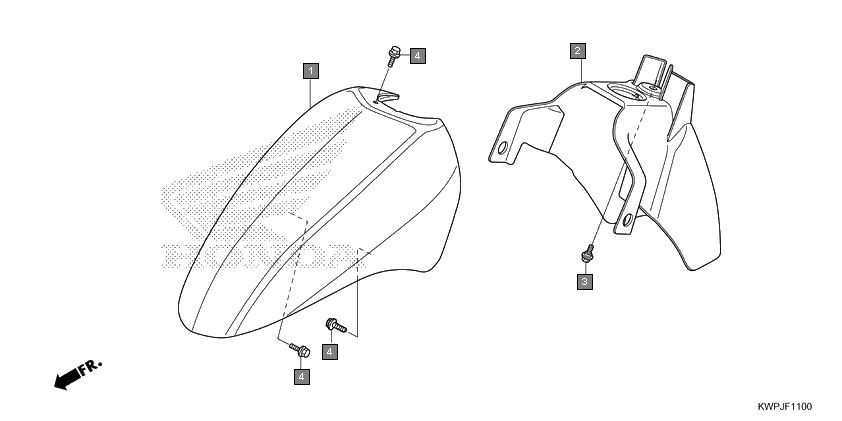

Scooters Activa SCV110L Frame Front fender
Ref.No. Part No. Description Oty
1 61100KWPH00ZZ FENDER A, FR. 1
2 61120KWPH00ZA FENDER B, FR. *NH1* BLACK 1
3 90111KWP900 BOLT, INNER COVER 1
4 958010601207 BOLT, FLANGE, 6X12 3
