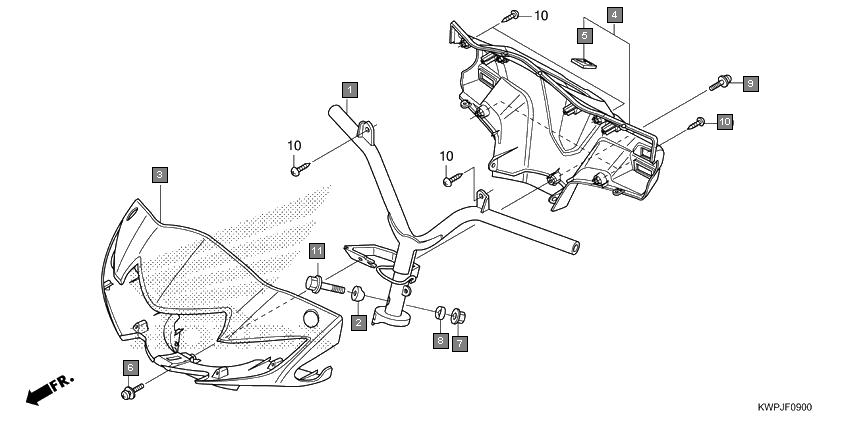

Scooters Activa SCV110L Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KWPH00 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53205KWPH00ZJ COVER, FR. HANDLE *NHC40M* MAT SELENE SILVER METALLIC 2 1
4 53205KWPH00ZK COVER, FR. HANDLE *NHB05P* PEARL IGNEOUS BLACK 1
5 53250KWPH00ZA COVER COMP., HANDLE RR. *NH1* BLACK 1
6 53250KWPH20ZB COVER COMP., HANDLE RR. *YR324R* CAFE BROWN R 1
7 53250KWPH00ZB COVER COMP., HANDLE RR. *YR324R* CAFE BROWN R 1
8 53250KWPH20ZA COVER COMP., HANDLE RR. *NH1* BLACK 1
9 86150KWS601 EMBLEM, PRODUCT(SJS) 1
10 90101KWPG00 SCREW-WASHER, 5X19 1
11 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
12 90502KWP900 COLLAR B, HANDLE SETTING 1
13 938910501607 SCREW-WASHER, 5X16 1
14 9390334380 SCREW, TAPPING, 4X12 6
15 958011005508 BOLT, FLANGE, 10X55 1
