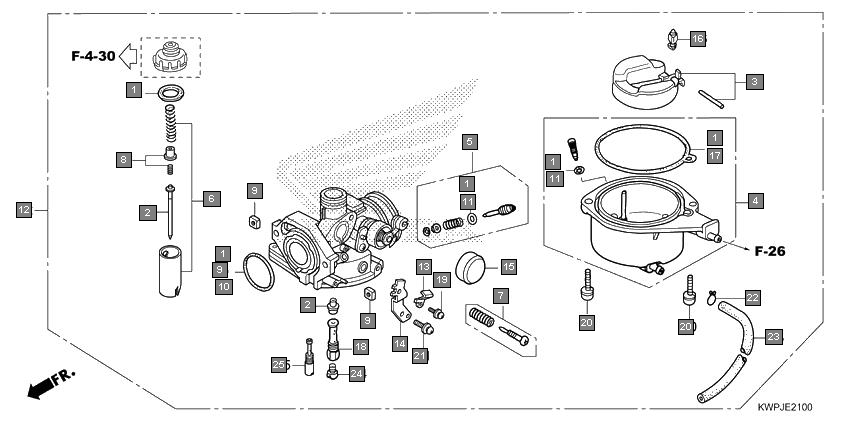

Scooters Activa SCV110L Engine Carburetor
Ref.No. Part No. Description Oty
1 16010K24901 GASKET SET 1
2 16012KWPE01 NEEDLE SET, JET 1
3 16013KRB901 FLOAT SET 1
4 16015K24901 CHAMBER SET, FLOAT 1
5 16016KPH901 SCREW SET 1
6 16022KWPE01 VALVE SET, THROTTLE 1
7 16028KPL901 SCREW SET 1
8 16037KRS601 PLATE SET, VALVE 1
9 16041KPL901 NUT SET, SQUARE 1
10 16075KPL901 O-RING 1
11 16076KPL901 O-RING 2
12 16100KWPG31 CARBURETOR ASSY.(5TN A) 1
13 16119KPL901 PLATE, STAY 1
14 16119KWP901 STAY, WIRE 1
15 16148KPL901 CAP, CHOKE DUST 1
16 16155KPL901 VALVE COMP., FLOAT 1
17 16163KWS901 GASKET, FLOAT CHAMBER 1
18 16165KWPG31 HOLDER, NEEDLE JET 1
19 938920401018 SCREW-WASHER, 4X10 1
20 938920401808 SCREW-WASHER, 4X18 2
21 938920501218 SCREW-WASHER, 5X12 1
22 9500202659 CLIP, TUBE(B6.5) 1
23 950053528050 TUBE, 3.5X280(95005-35001-50M) 1
24 99101GCK0850 JET, MAIN, #85 1
25 99103KWP0350 JET COMP.(#35X#35) 1
