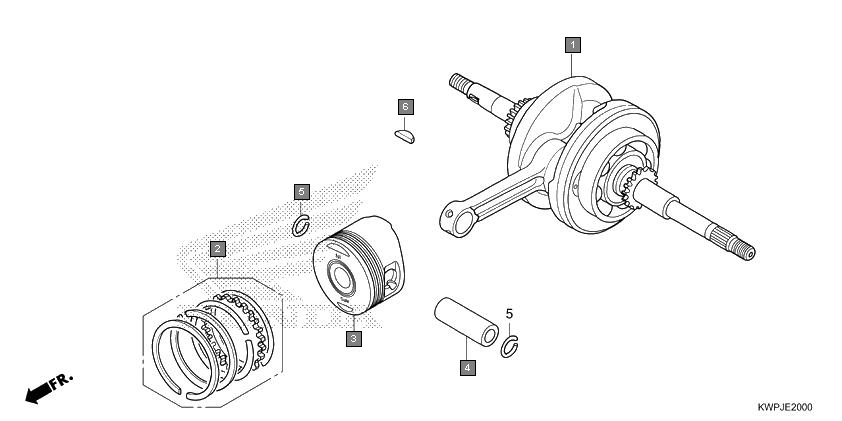

Scooters Activa SCV110L Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KWPD02 CRANKSHAFT COMP. 1
2 13053KWPD00 RING SET, PISTON(1.00)(TPR) 1
3 13013KWPD00 RING SET, PISTON(STD.)(TPR) 1
4 13023KWPD00 RING SET, PISTON(0.25)(TPR) 1
5 13033KWPD00 RING SET, PISTON(0.50)(TPR) 1
6 13012KWPD00 RING SET, PISTON(STD.)(SAM) 1
7 13042KWPD00 RING SET, PISTON(0.75)(SAM) 1
8 13043KWPD00 RING SET, PISTON(0.75)(TPR) 1
9 13052KWPD00 RING SET, PISTON(1.00)(SAM) 1
10 13041KWPD00 RING SET, PISTON(0.75)(RIKEN) 1
11 13032KWPD00 RING SET, PISTON(0.50)(SAM) 1
12 13031KWPD00 RING SET, PISTON(0.50)(RIKEN) 1
13 13051KWPD00 RING SET, PISTON(1.00)(RIKEN) 1
14 13011KWPD00 RING SET, PISTON(STD.)(RIKEN) 1
15 13022KWPD00 RING SET, PISTON(0.25)(SAM) 1
16 13021KWPD00 RING SET, PISTON(0.25)(RIKEN) 1
17 13101KWPD00 PISTON(STD.) 1
18 13102KWPD00 PISTON(0.25) 1
19 13104KWPD00 PISTON(0.75) 1
20 13103KWPD00 PISTON(0.50) 1
21 13105KWPD00 PISTON(1.00) 1
22 13111KWS900 PIN, PISTON 1
23 13115KWS900 CLIP, PISTON PIN, 12MM 2
24 90741KPL900 KEY, WOODRUFF 1
