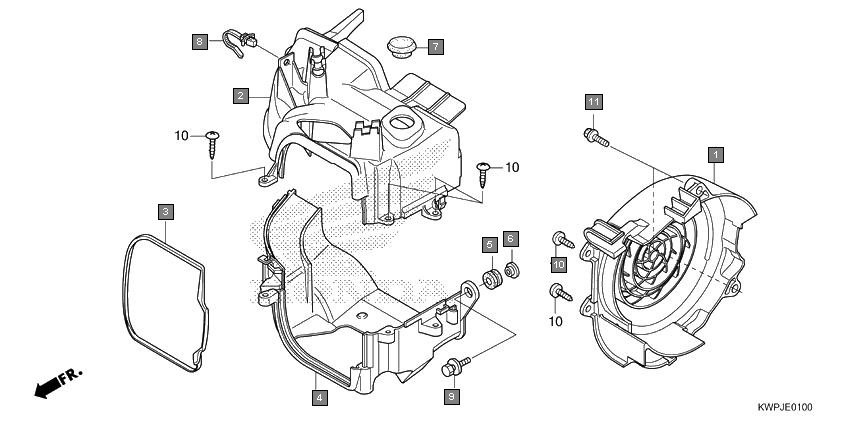

Scooters Activa SCV110L Engine Shroud/fan cover
Ref.No. Part No. Description Oty
1 19610KWPD00 COVER COMP., FAN 1
2 19621KWPD00 SHROUD, IN. 1
3 19625KWPD00 SEAL, SHROUD 1
4 19631KVTD00 SHROUD, EX. 1
5 19639GBC000 RUBBER, MOUNTING 1
6 33715GB0900 COLLAR, TAILLIGHT SETTING 1
7 82871671000 GROMMET, DRAIN HOLE, 25MM 1
8 90672KPL901 CLIP, BODY 1
9 934040602000 BOLT-WASHER, 6X20 1
10 9390325380 SCREW, TAPPING, 5X16 5
11 960010602507 BOLT, FLANGE, 6X25 2
