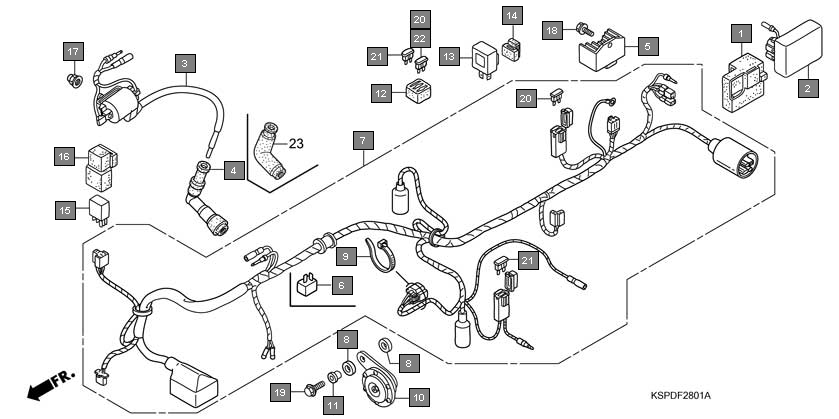

Motorcycles CB Unicorn CBF150MA Frame Wire harness(cbf1507/m7/m9/ma)
Ref.No. Part No. Description Oty
1 30401KSP911 CUSHION, C.D.I. UNIT 1
2 30410KSP861 C.D.I. UNIT 1
3 30500KSPB11 COIL ASSY., IGNITION 1
4 31600KSP861 RECTIFIER COMP., REGULATOR 1
5 31700HM5630 RECTIFIER ASSY., SILICON 1
6 32100KSP860 HARNESS, WIRE 1
7 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
8 35701MG9950 BAND(BLACK 3.5X140) 1
9 38110KSP931 HORN COMP.(HIGH) 1
10 38117KFE701 COLLAR, HORN SETTING 1
11 38201KSP910 RUBBER, SPARE FUSE SETTING 1
12 38301KPL901 RELAY COMP., WINKER 1
13 38306GE7000 SUSPENSION, WINKER RELAY 1
14 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
15 38506KSP910 SUSPENSION, POWER RELAY 1
16 90201415000 NUT, CAP, 6MM 1
17 957010601200 BOLT, FLANGE, 6X12 1
18 957020601200 BOLT, FLANGE, 6X12 1
19 957010602008 BOLT, FLANGE, 6X20 1
20 957020602008 BOLT, FLANGE, 6X20 1
21 9820031500 FUSE, BLADE(15A) 2
22 9820032000 FUSE, BLADE(20A) 1
23 30700KSPB01 CAP ASSY., NOISE SUPPRESSOR 1
