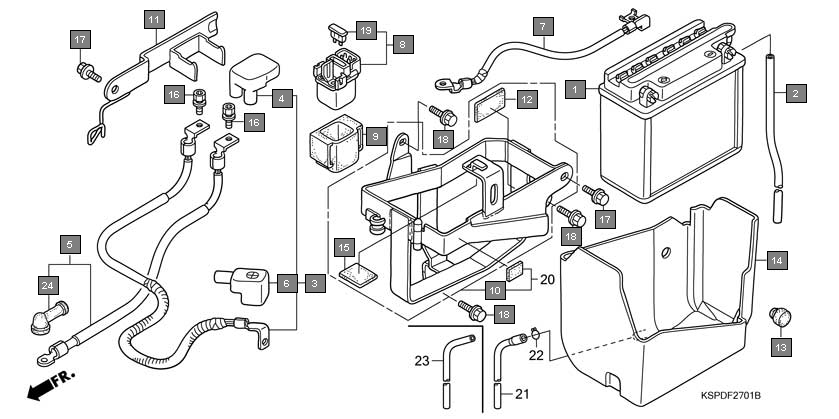

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31500KSP921 | BATTERY(YB7B-B) | 1 |
2 | 31502KSP920 | TUBE, BATTERY BREATHER | 1 |
3 | 32401KSP860 | CABLE, STARTER MAGNETIC BATTERY | 1 |
4 | 32406KSP860 | COVER, STARTER MAGNETIC TERMINAL | 1 |
5 | 32410KSP860 | CABLE, STARTER MOTOR | 1 |
6 | 32414KSP860 | COVER, BATTERY TERMINAL | 1 |
7 | 32601KSP920 | CABLE, BATTERY EARTH | 1 |
8 | 35850KEB620 | SWITCH ASSY., STARTER MAGNETIC | 1 |
9 | 35856KSP920 | RUBBER, SHOCK | 1 |
10 | 50383GB6300 | RUBBER, BATTERY | 1 |
11 | 50384KSP920 | RUBBER, BATTERY TRAY | 1 |
12 | 50385KSP920 | TRAY, BATTERY | 1 |
13 | 50386130690 | CUSHION C, BATTERY | 1 |
14 | 90111MR5000 | BOLT, SOCKET, 5X9 | 2 |
15 | 92301060120A | BOLT, RECESSED, 6X12 | 2 |
16 | 957010601200 | BOLT, FLANGE, 6X12 | 3 |
17 | 957020601200 | BOLT, FLANGE, 6X12 | 3 |
18 | 9820032000 | FUSE, BLADE(20A) | 1 |
19 | 50380KSP860 | BOX COMP., BATTERY | 1 |
20 | 50388KTE910 | TUBE, BATTERY TRAY | 1 |
21 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
22 | 32411253000 | COVER, STARTER MOTOR TERMINAL | 1 |
