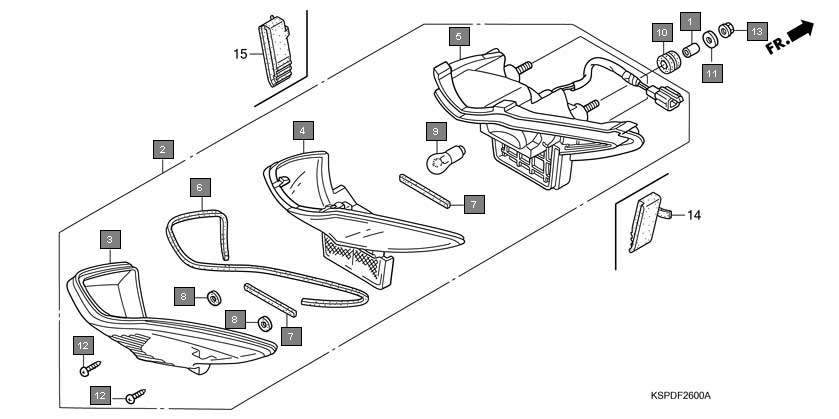

Motorcycles CB Unicorn CBF150MA Frame Taillight(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 33603053650 COLLAR 3
2 33701KSP911 TAILLIGHT UNIT 1
3 33702KSP911 LENS, TAILLIGHT 1
4 33703KSP911 LENS COMP., TAILLIGHT INNER 1
5 33710KSP911 BASE COMP., TAILLIGHT 1
6 33715KSP911 PACKING(1) 1
7 33716KSP911 PACKING(2) 2
8 33717KSP911 PACKING(3) 2
9 34906447711 BULB, TAIL & STOP LIGHT (12V 21/5W)(STANLEY) 1
10 77209KAG900 RUBBER, SEAT STAY MOUNTING 3
11 90563355000 WASHER, WHEEL, 6MM 3
12 9390124480 SCREW, TAPPING, 4X16 2
13 9405006000 NUT, FLANGE, 6MM 3
14 33731KSP900 RUBBER, R. TAILLIGHT MOUNTING 1
15 33732KSP900 RUBBER, L. TAILLIGHT MOUNTING 1
