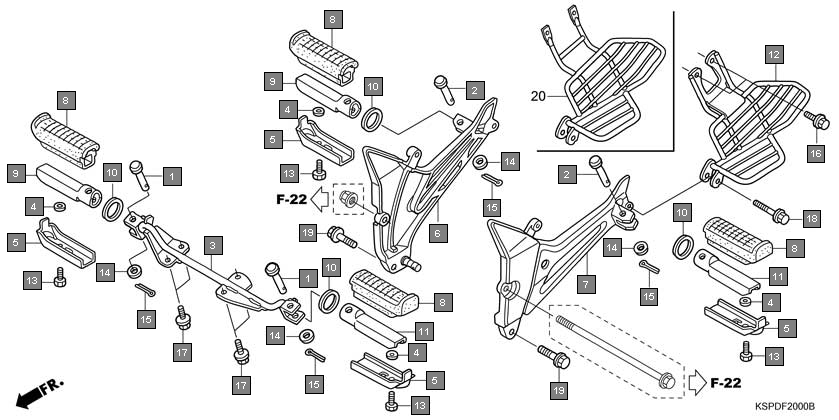

Motorcycles CB Unicorn CBF150MA Frame Step(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 50602KSP900 PIN, MAIN STEP BAR JOINT 2
2 50603KSP900 PIN, STEP BAR JOINT 2
3 50610KSP930 BAR COMP., STEP 1
4 50618KE8000 COLLAR, 6.5X11X3 4
5 50619KSP900 PLATE, STEP LOWER 4
6 50630KSPA70ZA HOLDER, R. STEP *NH303M* MAT AXIS GRAY METALLIC 1
7 50640KSPA70ZA HOLDER, L. STEP *NH303M* MAT AXIS GRAY METALLIC 1
8 50661KFN880 RUBBER, MAIN STEP 4
9 50701KSP900 BAR, R. MAIN STEP 2
10 50715KSP910 PLATE, PILLION STEP SIDE 4
11 50801KSP900 BAR, L. MAIN STEP 2
12 92101060120G BOLT, HEX., 6X12 4
13 9410208000 WASHER, PLAIN, 8MM 4
14 9420120150 PIN, SPLIT, 2.0X15 4
15 957010801600 BOLT, FLANGE, 8X16 2
16 957020801600 BOLT, FLANGE, 8X16 2
17 957010802000 BOLT, FLANGE, 8X20 4
18 957020802000 BOLT, FLANGE, 8X20 4
19 957010803500 BOLT, FLANGE, 8X35 1
20 957020803500 BOLT, FLANGE, 8X35 1
21 957011002500 BOLT, FLANGE, 10X25 2
22 957021002500 BOLT, FLANGE, 10X25 2
23 51103KSPA70 GUARD, SARI 1
