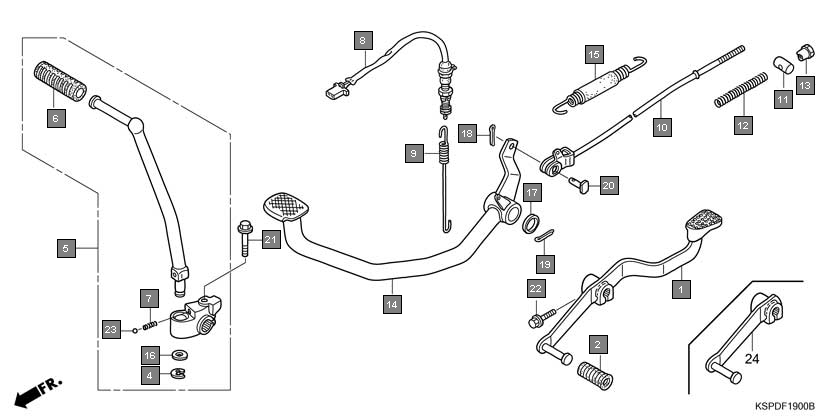

Motorcycles CB Unicorn CBF150MA Frame Pedal(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 24781KSP860 RUBBER, CHANGE PEDAL 1
2 28293333000 CLIP, KICK STARTER ARM 1
3 28300KSPA70 ARM ASSY., KICK STARTER 1
4 28311KC5000 RUBBER, KICK STARTER 1
5 28333KK0000 SPRING, KICK STARTER 1
6 35350KSP861 SWITCH ASSY., RR. STOP 1
7 35357KSP900 SPRING, STOP SWITCH 1
8 43451KSP900 ROD COMP., RR. BRAKE 1
9 43455KSP900 JOINT, BRAKE ARM 1
10 43456KSP900 SPRING, BRAKE ROD 1
11 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
12 46500KSPB10 PEDAL, BRAKE 1
13 46510KSP900 SPRING SET, BRAKE PEDAL 1
14 90505KRM860 WASHER, 15.5X22 1
15 90521028000 WASHER, 17X22 1
16 9420120120 PIN, SPLIT, 2.0X12 1
17 9420130300 PIN, SPLIT, 3.0X30 1
18 9501553000 PIN C, JOINT 1
19 957010803500 BOLT, FLANGE, 8X35 1
20 957020803500 BOLT, FLANGE, 8X35 1
21 960010602000 BOLT, FLANGE, 6X20 1
22 9621108000 BALL, STEEL, #8(1/4) 1
23 24701KSPB10 PEDAL, GEAR CHANGE 1
