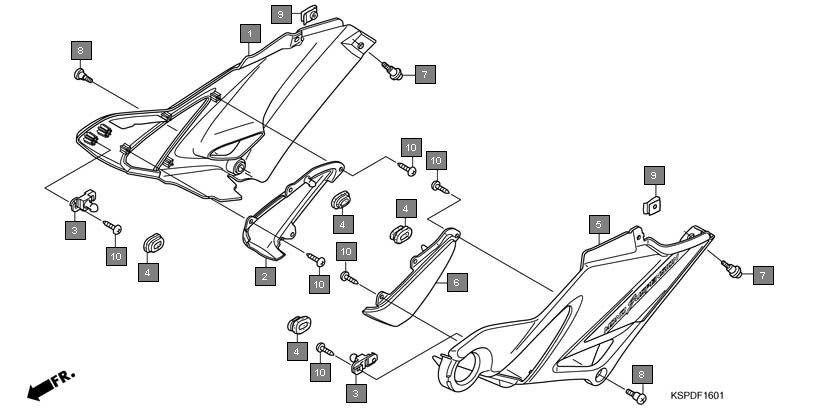

Motorcycles CB Unicorn CBF150MA Frame Side cover(cbf1507/m7/m9/ma)
Ref.No. Part No. Description Oty
1 83500KSPA70ZA COVER SET, R. SIDE(WL) *NH105* MAT BLACK(#15-#20) 1
2 83541KSP860 COVER, R. SUB 1
3 83542KSP860 JOINT, SIDE COVER 2
4 83551300000 GROMMET, AIR CLEANER CASE 4
5 83600KSPA70ZA COVER SET, L. SIDE(WL) *NH105* MAT BLACK(#15-#20) 1
6 83641KSP860 COVER, L. SUB 1
7 90102GB2720 SCREW, PAN, 5X16 2
8 90107KW7900 BOLT, FAIRING SETTING 2
9 90320GC3000 NUT, SPRING, 5MM 2
10 9390324320 SCREW, TAPPING, 4X12 12
