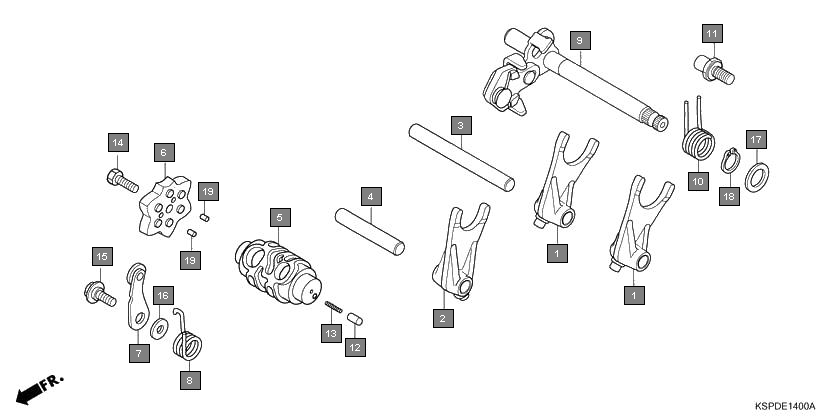

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 24211KRM840 | FORK, GEARSHIFT | 2 |
2 | 24212KRM840 | FORK, CENTER GEARSHIFT | 1 |
3 | 24241KRM840 | SHAFT A, GEARSHIFT FORK | 1 |
4 | 24242KRM840 | SHAFT B, GEARSHIFT FORK | 1 |
5 | 24301KSP910 | DRUM, GEARSHIFT | 1 |
6 | 24410KVS900 | PLATE COMP., GEARSHIFT DRUM STOPPER | 1 |
7 | 24430KRMB10 | STOPPER COMP., GEARSHIFT DRUM | 1 |
8 | 24436KRM840 | SPRING, SHIFT DRUM STOPPER | 1 |
9 | 24610KRM840 | SPINDLE COMP., GEARSHIFT | 1 |
10 | 24651KSP910 | SPRING, GEARSHIFT RETURN | 1 |
11 | 24652KRM840 | PIN, SHIFT RETURN SPRING | 1 |
12 | 35751KPH900 | CAP, CHANGE SWITCH CONTACT | 1 |
13 | 35752KRM840 | SPRING, CHANGE SWITCH CONTACT | 1 |
14 | 90003KVS900 | BOLT, HEX., 6X20 | 1 |
15 | 90022KRM840 | PIVOT, SHIFT DRUM STOPPER ARM | 1 |
16 | 90417KRM840 | WASHER, DRUM STOPPER | 1 |
17 | 90457KRM840 | WASHER, 14MM | 1 |
18 | 9451014000 | CIRCLIP, EXTERNAL, 14MM | 1 |
19 | 9622030085 | ROLLER, 3X8.5 | 2 |
