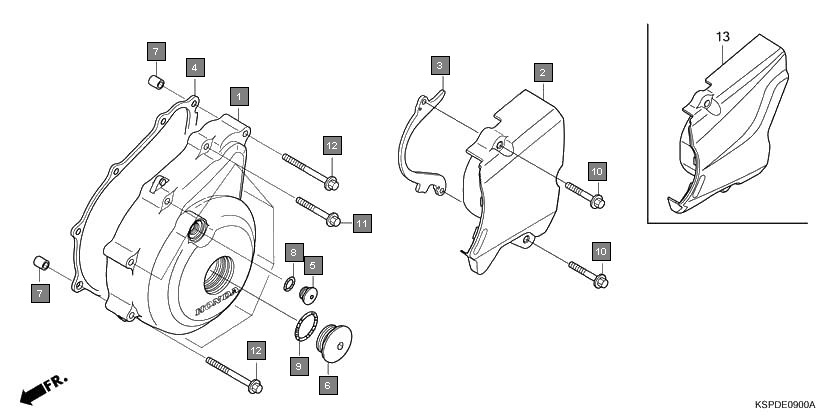

Motorcycles CB Unicorn CBF150MA Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KSPB00 COVER, L. CRANKCASE 1
2 11360KSP860 COVER COMP., L. RR. 1
3 11365KSP910 GUIDE, DRIVE CHAIN 1
4 11395KWK900 GASKET, L. COVER 1
5 90084MN8010 CAP, 14MM 1
6 90087KRM840 CAP, 32MM 1
7 90702KRM840 DOWEL PIN, 8X14 2
8 91303KRM840 O-RING, 13.8X2.5 1
9 91305KRM840 O-RING, 31.7X2.4 1
10 960010603000 BOLT, FLANGE, 6X30 2
11 960010603500 BOLT, FLANGE, 6X35 7
12 960010604500 BOLT, FLANGE, 6X45 2
