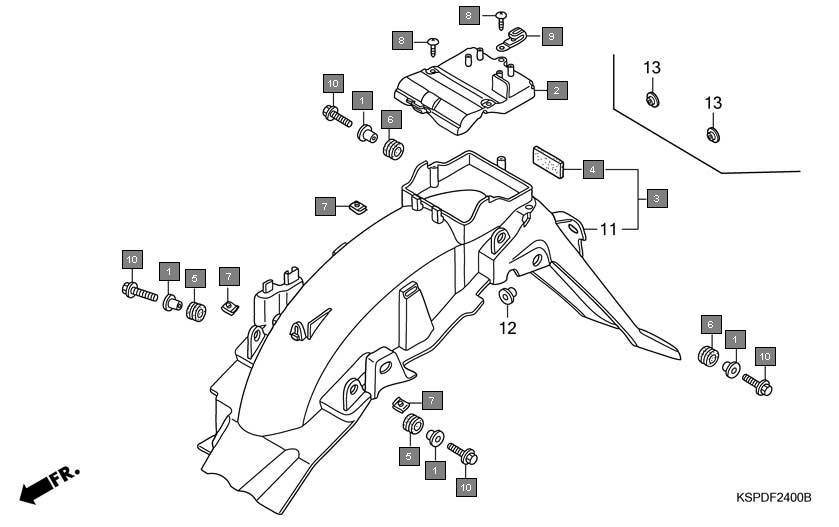

Motorcycles CB Unicorn CBF150M9 Frame Rear fender(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 19052KV0000 COLLAR, RADIATOR MOUNTING 4
2 80102KSP900 COVER, TOOL BOX 1
3 83545KCJ690 RUBBER, SIDE COVER 2
4 83545KSP900 RUBBER, RR. FENDER 2
5 90320GC3000 NUT, SPRING, 5MM 3
6 9390325220 SCREW, TAPPING, 5X12 3
7 9459147000 CLIP, 4X70 1
8 957010602000 BOLT, FLANGE, 6X20 4
9 80110KSP860 FENDER, RR. 1
10 90311KTE910 NUT, RR. FENDER 2
