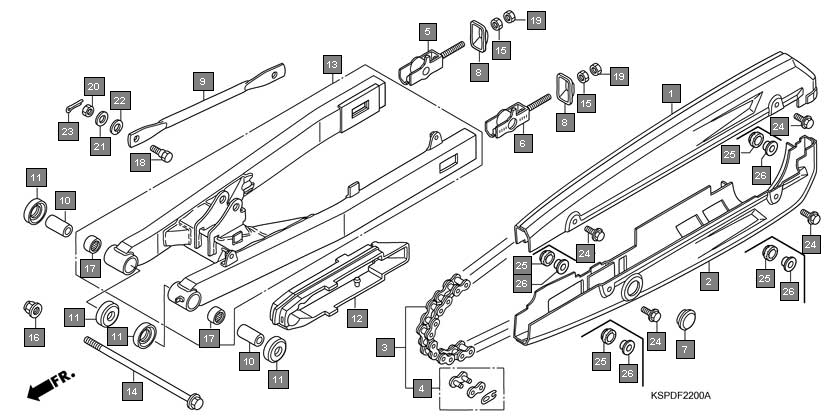

Motorcycles CB Unicorn CBF150M9 Frame Swingarm(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 40510KSP860ZA CASE, UPPER HALF DRIVE CHAIN *NH229MU* ANCHOR GRAY METALLIC-U 1
2 40520KSP860ZA CASE, UNDER HALF DRIVE CHAIN *NH229MU* ANCHOR GRAY METALLIC-U 1
3 40530KSP901 CHAIN, DRIVE(428H-126)(T.I.D.) 1
4 40530KSP902 CHAIN, DRIVE(428H-126)(L.G.B.) 1
5 40531KSP901 JOINT, DRIVE CHAIN(T.I.D.) 1
6 40531KSP902 JOINT, DRIVE CHAIN(L.G.B.) 1
7 40543KSP900 ADJUSTER, R. CHAIN 1
8 40544KSP900 ADJUSTER, L. CHAIN 1
9 40545001000 CAP, CHAIN CASE PEEP HOLE 1
10 40546KR1760 CAP, RR. FORK END 2
11 43431KSP860 ARM, RR. BRAKE STOPPER 1
12 52141KSP900 COLLAR, SWINGARM PIVOT 2
13 52144GC4003 DUST SEAL, 31X40.5X7.1(ARAI) 4
14 52170KSP860 SLIDER, CHAIN 1
15 52200KSP860ZA SWINGARM SUB ASSY., RR. *NH1* BLACK 1
16 90121KSP900 BOLT, SWINGARM PIVOT 1
17 90302KBP900 NUT, SPECIAL, 6MM 2
18 90305KCJ951 NUT, U, 14MM(FUJI SEIMITSU) 1
19 91071KSP901 BEARING, NEEDLE, 20X26X20 2
20 9281210000 BOLT A, STOPPER ARM 1
21 94001060000S NUT, HEX., 6MM 2
22 94001080000S NUT, HEX., 8MM 1
23 9410108000 WASHER, PLAIN, 8MM 1
24 9411110000 WASHER, SPRING, 10MM 1
25 9420120150 PIN, SPLIT, 2.0X15 1
26 957010601207 BOLT, FLANGE, 6X12 4
27 90512KSP860 RUBBER, CHAIN CASE SETTING 4
28 90522KSP860 COLLAR, CHAIN CASE SETTING 4
