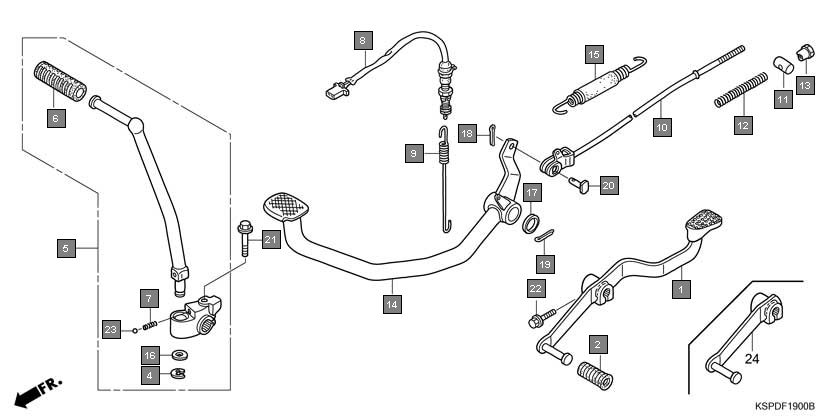

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24781KSP860 | RUBBER, CHANGE PEDAL | 1 |
| 2 | 28293333000 | CLIP, KICK STARTER ARM | 1 |
| 3 | 28300KSPA70 | ARM ASSY., KICK STARTER | 1 |
| 4 | 28311KC5000 | RUBBER, KICK STARTER | 1 |
| 5 | 28333KK0000 | SPRING, KICK STARTER | 1 |
| 6 | 35350KSP861 | SWITCH ASSY., RR. STOP | 1 |
| 7 | 35357KSP900 | SPRING, STOP SWITCH | 1 |
| 8 | 43451KSP900 | ROD COMP., RR. BRAKE | 1 |
| 9 | 43455KSP900 | JOINT, BRAKE ARM | 1 |
| 10 | 43456KSP900 | SPRING, BRAKE ROD | 1 |
| 11 | 43459KSP900 | NUT, BRAKE ROD ADJUSTING | 1 |
| 12 | 46500KSP901 | PEDAL, BRAKE | 1 |
| 13 | 46510KSP900 | SPRING SET, BRAKE PEDAL | 1 |
| 14 | 90505KRM860 | WASHER, 15.5X22 | 1 |
| 15 | 90521028000 | WASHER, 17X22 | 1 |
| 16 | 9420120120 | PIN, SPLIT, 2.0X12 | 1 |
| 17 | 9420130300 | PIN, SPLIT, 3.0X30 | 1 |
| 18 | 9501553000 | PIN C, JOINT | 1 |
| 19 | 957010803500 | BOLT, FLANGE, 8X35 | 1 |
| 20 | 960010602000 | BOLT, FLANGE, 6X20 | 1 |
| 21 | 9621108000 | BALL, STEEL, #8(1/4) | 1 |
| 22 | 24701KSPA70 | PEDAL, GEAR CHANGE | 1 |
