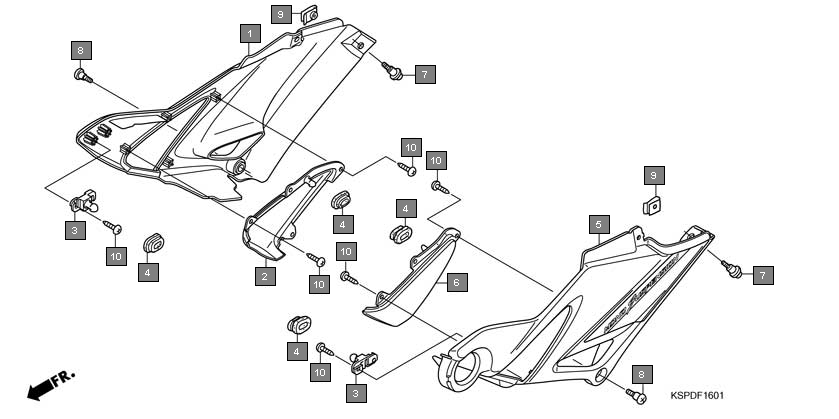

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 83500KSPA70ZA | COVER SET, R. SIDE(WL) *NH105* MAT BLACK(#15-#20) | 1 |
2 | 83500KSPA80ZA | COVER SET, R. SIDE(WL) *NH1* BLACK | 1 |
3 | 83500KSPA90ZA | COVER SET, R. SIDE(WL) *NHB16* VIRTUOUS WHITE | 1 |
4 | 83541KSP860 | COVER, R. SUB | 1 |
5 | 83542KSP860 | JOINT, SIDE COVER | 2 |
6 | 83551300000 | GROMMET, AIR CLEANER CASE | 4 |
7 | 83600KSPA70ZA | COVER SET, L. SIDE(WL) *NH105* MAT BLACK(#15-#20) | 1 |
8 | 83600KSPA80ZA | COVER SET, L. SIDE(WL) *NH1* BLACK | 1 |
9 | 83600KSPA90ZA | COVER SET, L. SIDE(WL) *NHB16* VIRTUOUS WHITE | 1 |
10 | 83641KSP860 | COVER, L. SUB | 1 |
11 | 90102GB2720 | SCREW, PAN, 5X16 | 2 |
12 | 90107KW7900 | BOLT, FAIRING SETTING | 2 |
13 | 90320GC3000 | NUT, SPRING, 5MM | 2 |
14 | 9390324320 | SCREW, TAPPING, 4X12 | 12 |
