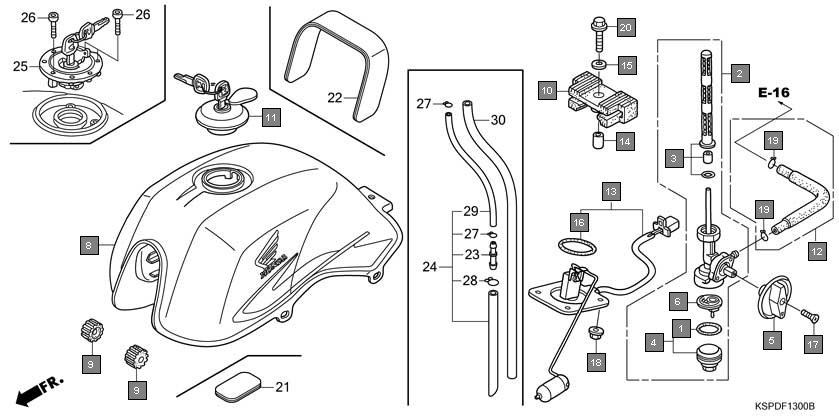

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16173001004 | PACKING, FUEL STRAINER CUP | 1 |
| 2 | 16950KSP900 | COCK ASSY., FUEL | 1 |
| 3 | 16952KSP900 | SCREEN SET, FUEL STRAINER | 1 |
| 4 | 16953GT4305 | CUP SET, FUEL STRAINER | 1 |
| 5 | 16955KSP900 | LEVER, FUEL COCK | 1 |
| 6 | 16959HB3005 | FILTER, CUP | 1 |
| 7 | 17520KSPA70ZA | TANK SET, FUEL(WL) *NHB05P* PEARL IGNEOUS BLACK | 1 |
| 8 | 17520KSPA70ZB | TANK SET, FUEL(WL) *NHB06M* SPACE SILVER METALLIC | 1 |
| 9 | 17520KSPA80ZA | TANK SET, FUEL(WL) *TYPE1* | 1 |
| 10 | 17520KSPA80ZB | TANK SET, FUEL(WL) *TYPE2* | 1 |
| 11 | 17520KSPA90ZA | TANK SET, FUEL(WL) *TYPE1* | 1 |
| 12 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 13 | 17613KSP900 | CUSHION, FUEL TANK RR. | 1 |
| 14 | 17681KSP860 | TUBE, FUEL | 1 |
| 15 | 37080KSP860 | FUEL UNIT SET | 1 |
| 16 | 80101KFN850 | COLLAR, 8X12 | 1 |
| 17 | 90534MV4000 | WASHER, 8.5X28 | 1 |
| 18 | 91305443740 | O-RING, 39.5X5 | 1 |
| 19 | 93500040250G | SCREW, PAN, 4X25 | 1 |
| 20 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 21 | 9500202100 | CLIP, TUBE(B10) | 2 |
| 22 | 957010802508 | BOLT, FLANGE, 8X25 | 1 |
| 23 | 17504KSP860 | FILM, TANK PROTECTOR | 1 |
| 24 | 17519KSP860 | PROTECTOR, FUEL TANK | 1 |
| 25 | 17525KVE900 | JOINT, TUBE | 1 |
| 26 | 17530KSP860 | TUBE ASSY., BREATHER | 1 |
| 27 | 17620KSP861 | CAP COMP., FUEL FILLER | 1 |
| 28 | 90111KSP860 | BOLT, SOCKET, 4X21 | 3 |
| 29 | 9500202080 | CLIP, TUBE(B8) | 2 |
| 30 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 31 | 950054540020 | TUBE, 4.5X400(95005-45001-20M) | 1 |
| 32 | 950058070020 | TUBE, 8X700(95005-80001-20M) | 1 |
