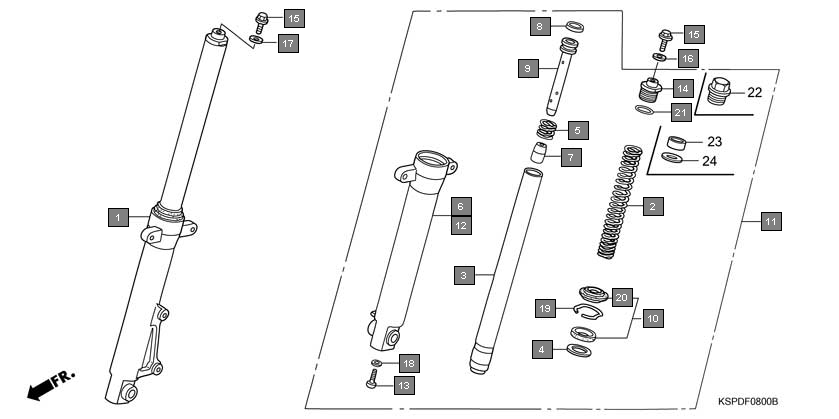

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 51400KSP871 | FORK ASSY., R. FR. | 1 |
2 | 51401KSP871 | SPRING, FR. FORK | 2 |
3 | 51410KSP871 | PIPE COMP., FR. FORK | 2 |
4 | 51412KK4003 | RING, BACK UP | 2 |
5 | 51412KSP901 | SPRING, REBOUND | 2 |
6 | 51420KSP861 | CASE COMP., R. FR. BOTTOM | 1 |
7 | 51432KFN851 | PIECE, OIL LOCK | 2 |
8 | 51437KFN851 | RING, PISTON | 2 |
9 | 51440KSP901 | PIPE, SEAT | 2 |
10 | 51490GAA305 | SEAL SET, FR. FORK | 2 |
11 | 51500KSP871 | FORK ASSY., L. FR. | 1 |
12 | 51520KSP861 | CASE COMP., L. FR. BOTTOM | 1 |
13 | 90116KAG901 | BOLT, SOCKET, 8MM(SHOWA) | 2 |
14 | 90544439930 | PACKING(SHOWA) | 2 |
15 | 90601354000 | RING, OIL SEAL STOP | 2 |
16 | 91254GAA003 | DUST SEAL | 2 |
17 | 91356KAG901 | O-RING(SHOWA) | 2 |
18 | 90123KSP871 | BOLT A, FR. FORK | 2 |
