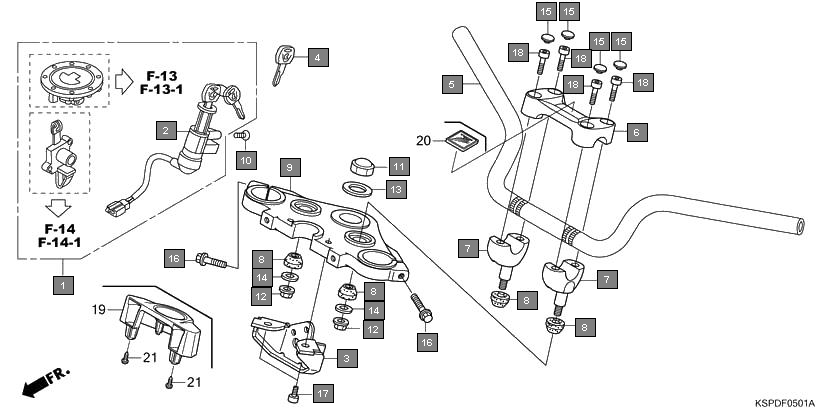

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35010KSP860 | KEY SET | 1 |
2 | 35100KSP861 | SWITCH ASSY., COMBINATION & LOCK | 1 |
3 | 35105KSP860 | STAY COMP., COMBINATION SWITCH | 1 |
4 | 35121KSP910 | KEY, BLANK | 1 |
5 | 53100KSPA70 | PIPE, STEERING HANDLE | 1 |
6 | 53131KSP860ZB | HOLDER, HANDLE UPPER *NH175M* WARM SILVER METALLIC | 1 |
7 | 53132KSP860ZB | HOLDER, HANDLE UNDER *NH175M* WARM SILVER METALLIC | 2 |
8 | 53133KSP860 | RUBBER, HANDLE CUSHION | 4 |
9 | 53230KSP860ZB | BRIDGE, FORK TOP *NH175M* WARM SILVER METALLIC | 1 |
10 | 90164KPL900 | SCREW, U-LOCK FLAT, 6X12 | 2 |
11 | 90304KSP900 | NUT, STEERING STEM | 1 |
12 | 90309KTE911 | NUT, FLANGE SPECIAL, 8MM | 2 |
13 | 90503KSP900 | WASHER, STEERING STEM | 1 |
14 | 90535KSP902 | WASHER, HANDLE UNDER HOLDER | 2 |
15 | 91455KL8710 | CAP, SOCKET BOLT, 8MM | 4 |
16 | 957010804000 | BOLT, FLANGE, 8X40 | 2 |
17 | 966000802000 | BOLT, SOCKET, 8X20 | 2 |
18 | 966000803200 | BOLT, SOCKET, 8X32 | 4 |
