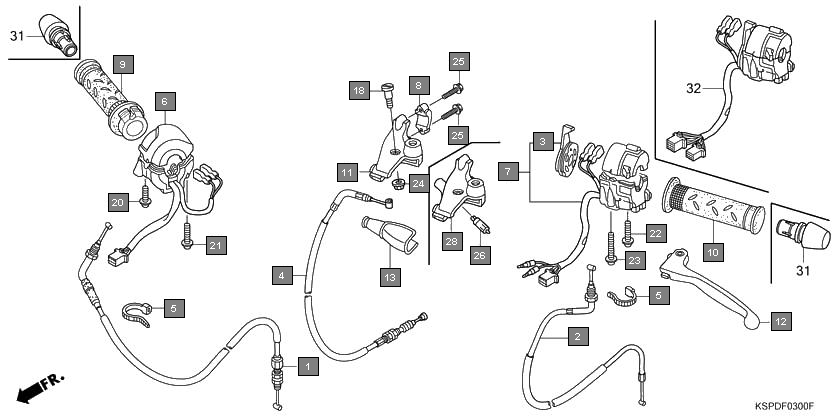

Motorcycles CB Unicorn CBF150M9 Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KSP901 CABLE COMP., THROTTLE 1
2 17950KSP900 CABLE COMP., CHOKE 1
3 17962KSP900 LEVER COMP., CHOKE 1
4 22870KSP901 CABLE COMP., CLUTCH 1
5 32161KSP920 BAND B1, WIRE 2
6 35150KSP920 SWITCH ASSY., LIGHTING & STARTER 1
7 35200KSP920 SWITCH ASSY., WINKER 1
8 45517166006 HOLDER, MASTER CYLINDER 1
9 53140KSPA70 GRIP COMP., THROTTLE 1
10 53166KSPA70 GRIP, L. HANDLE 1
11 53178KSP900 LEVER COMP., L. HANDLE 1
12 53182KSP900 BOOT, L. HANDLE COVER 1
13 90113KSP901 BOLT, L. HANDLE LEVER PIVOT 1
14 938920502007 SCREW-WASHER, 5X20 1
15 938920502507 SCREW-WASHER, 5X25 1
16 938920503507 SCREW-WASHER, 5X35 1
17 938920504507 SCREW-WASHER, 5X45 1
18 9405006000 NUT, FLANGE, 6MM 1
19 960010602207 BOLT, FLANGE, 6X22 2
20 35330KEJ900 SWITCH COMP., FR. LEVER 1
21 53172KRC900 BRACKET, HANDLE LEVER 1
22 53105KRC900 END, STEERING HANDLE 2
