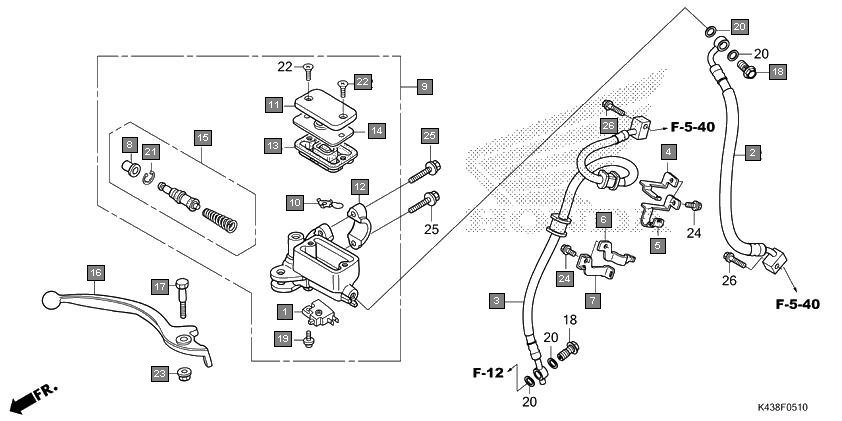

Motorcycles CB Hornet 160R CBF160MAK Frame Front brake master cylinder(abs)
Ref.No. Part No. Description Oty
1 35340KSPB51 SWITCH ASSY., FR. STOP 1
2 45126K43D21 HOSE COMP. A, FR. BRAKE 1
3 45129K43D21 HOSE COMP. B, FR. BRAKE 1
4 45154K43D20 CLAMPER A, FR. BRAKE HOSE 1
5 45155K43D20 CLAMPER B, FR. BRAKE HOSE 1
6 45156K43D20 CLAMPER C, FR. BRAKE HOSE 1
7 45157K43D20 CLAMPER D, FR. BRAKE HOSE 1
8 45504410003 BOOT COMP. 1
9 45510K21901 CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) 1
10 45512MA6006 PROTECTOR 1
11 45513HA2006 CAP, MASTER CYLINDER 1
12 45517166006 HOLDER, MASTER CYLINDER 1
13 45520GE2006 DIAPHRAGM 1
14 45521K21901 PLATE, DIAPHRAGM 1
15 45530471831 CYLINDER SET, MASTER 1
16 53175KSPB51 LEVER, R. STEERING HANDLE 1
17 90114166006 BOLT, HANDLE LEVER PIVOT 1
18 90145GAZ981 BOLT, OIL, 10X22 2
19 90508K21921 SCREW-WASHER, 4X12 1
20 90545300000 WASHER, OIL BOLT 4
21 90651MA5671 CIRCLIP 1
22 93600040121G SCREW, FLAT, 4X12 2
23 9405006000 NUT, FLANGE, 6MM 1
24 960010601207 BOLT, FLANGE, 6X12 2
25 960010602207 BOLT, FLANGE, 6X22 2
26 960010602500 BOLT, FLANGE, 6X25 2
