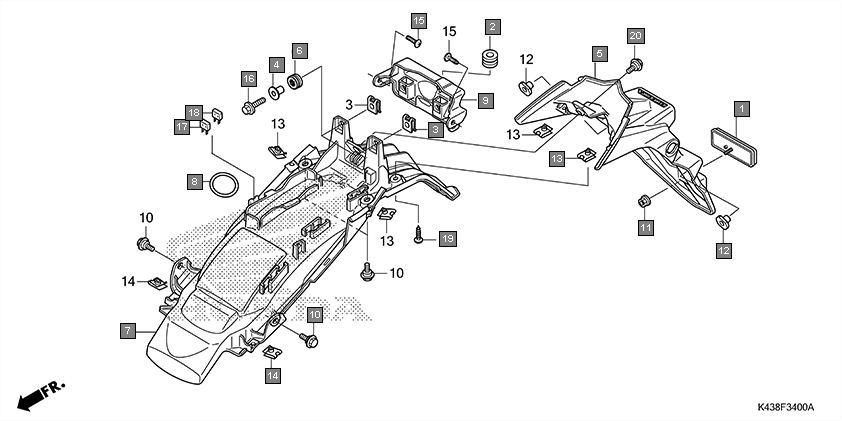

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741KPL902 | REFLECTOR, REFLEX | 1 |
2 | 61103357000 | RUBBER, FR. FENDER MOUNTING | 1 |
3 | 80102KZJ900 | NUT, CLIP, 6MM | 2 |
4 | 80105KZJ900 | COLLAR, RR. FENDER INNER | 2 |
5 | 80110K43900ZA | FENDER SET A, RR.(WL) *TYPE1* | 1 |
6 | 80112KVN900 | RUBBER, RR. FENDER | 2 |
7 | 80121K43900 | FENDER B, RR. | 1 |
8 | 80124K26900 | BAND, TOOL | 1 |
9 | 80131K43900 | STAY, INNER FENDER | 1 |
10 | 90111162000 | BOLT, FLANGE, 6MM | 4 |
11 | 90301KWN901 | NUT, U, 5MM | 1 |
12 | 90311KTE910 | NUT, RR. FENDER | 2 |
13 | 90320KTE600 | NUT, SPRING, 5MM | 4 |
14 | 90677KANT00 | NUT, CLIP, 5MM | 2 |
15 | 9390335320 | SCREW, TAPPING, 5X16 | 2 |
16 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
17 | 9820041000 | FUSE, MINI(10A) | 1 |
18 | 9820041500 | FUSE, MINI(15A) | 1 |
19 | 9390335380 | SCREW, TAPPING, 5X16 | 2 |
20 | 90111147000 | BOLT, FLANGE, 6MM | 1 |
