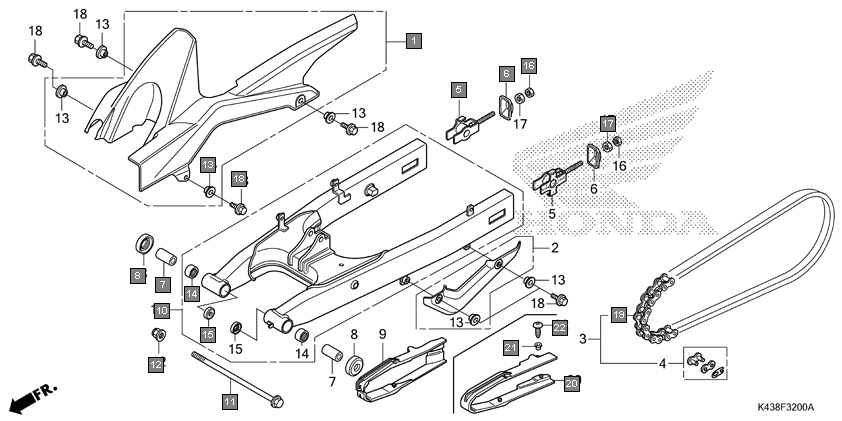

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40511K43D00 | CASE, DRIVE CHAIN | 1 |
| 2 | 40543KYJ900 | ADJUSTER COMP., CHAIN | 2 |
| 3 | 40546KYJ900 | CAP, SWINGARM END | 2 |
| 4 | 52141KSP900 | COLLAR, SWINGARM PIVOT | 2 |
| 5 | 52144GC4003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 |
| 6 | 52200K43D30ZA | SWINGARM SUB ASSY., RR. BLACK*NH1* | 1 |
| 7 | 52200K43D00ZA | SWINGARM SUB ASSY., RR. BLACK*NH1* | 1 |
| 8 | 90121KSP900 | BOLT, SWINGARM PIVOT | 1 |
| 9 | 90305KVN901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 |
| 10 | 90522KSP860 | COLLAR, CHAIN CASE SETTING | 4 |
| 11 | 91071KSP901 | BEARING, NEEDLE, 20X26X20 | 2 |
| 12 | 91254KS6003 | DUST SEAL, 20X26X4.5(ARAI) | 2 |
| 13 | 94002080000S | NUT, HEX., 8MM | 2 |
| 14 | 9403108000 | NUT, HEX., 8MM | 2 |
| 15 | 957010601207 | BOLT, FLANGE, 6X12 | 4 |
| 16 | 40530K43D01 | CHAIN, DRIVE(LGB) (R428NOR-132LE) | 1 |
| 17 | 52170K43D00 | SLIDER, CHAIN | 1 |
| 18 | 90556MB4000 | WASHER, FR. SIDE COVER | 1 |
| 19 | 9390125110 | SCREW, TAPPING, 5X10 | 1 |
