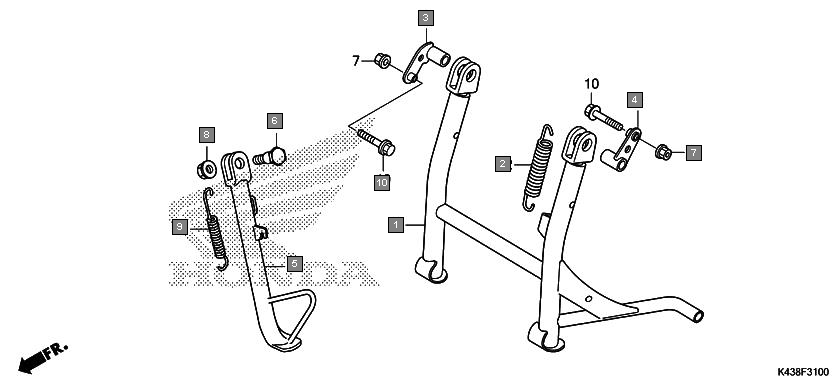

Motorcycles CB Hornet 160R CBF160MAK Frame Stand
Ref.No. Part No. Description Oty
1 50500K43900 STAND COMP., MAIN 1
2 50520K21900 SPRING, MAIN STAND 1
3 50526K43900 SHAFT, MAIN STAND PIVOT(R.) 1
4 50527K43900 SHAFT, MAIN STAND PIVOT(L.) 1
5 50530K43900 BAR COMP., SIDE STAND 1
6 90107GN1010 SCREW, SIDE STAND PIVOT 1
7 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
8 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
9 9501472102 SPRING A, SIDE STAND 1
10 957010603000 BOLT, FLANGE, 6X30 2
