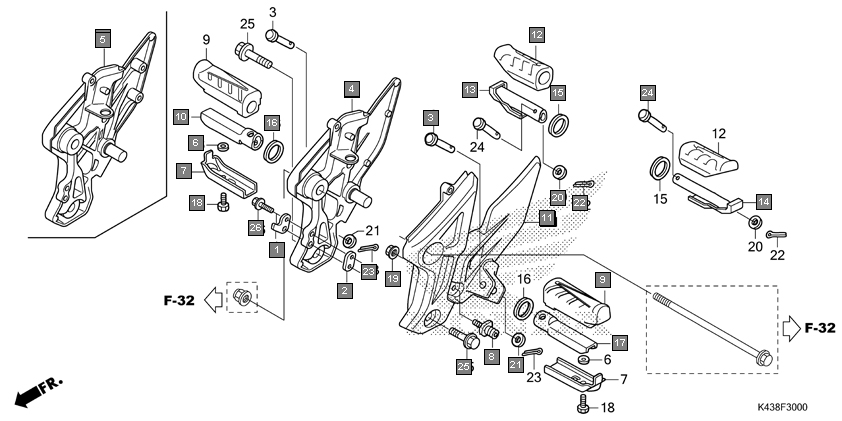

Motorcycles CB Hornet 160R CBF160MAK Frame Step
Ref.No. Part No. Description Oty
1 50220K43900 STOPPER, KICK STARTER 1
2 50221K43900 NUT, PLATE 1
3 50603KSP900 PIN, STEP BAR JOINT 2
4 50610K43D00ZB HOLDER, R. STEP *NHA95M* SWORD SILVER METALLIC 1
5 50610K43D00ZA HOLDER, R. STEP *NH303M* MAT AXIS GRAY METALLIC 1
6 50610K43D10ZA HOLDER, R. STEP *NH303M* MAT AXIS GRAY METALLIC 1
7 50610K43D10ZB HOLDER, R. STEP *NHA95M* SWORD SILVER METALLIC 1
8 50618KE8000 COLLAR, 6.5X11X3 2
9 50619KSP900 PLATE, STEP LOWER 2
10 50643KYJ900 PIVOT, CHANGE PEDAL 1
11 50661K43900 RUBBER, MAIN STEP 2
12 50701KSP900 BAR, R. MAIN STEP 1
13 50710K43D00ZB HOLDER, L. STEP *NHA95M* SWORD SILVER METALLIC 1
14 50710K43D00ZA HOLDER, L. STEP *NH303M* MAT AXIS GRAY METALLIC 1
15 50710KYJ900 RUBBER, PILLION STEP 2
16 50711K43900 BAR, R. PILLION STEP 1
17 50712K43900 BAR, L. PILLION STEP 1
18 50715KE8000 PLATE, PILLION STEP SIDE 2
19 50715KSP910 PLATE, PILLION STEP SIDE 2
20 50801KSP900 BAR, L. MAIN STEP 1
21 92101060120G BOLT, HEX., 6X12 2
22 9405008000 NUT, FLANGE, 8MM 1
23 9410106000 WASHER, PLAIN, 6MM 2
24 9410208000 WASHER, PLAIN, 8MM 2
25 9420116150 PIN, SPLIT, 1.6X15 2
26 9420120150 PIN, SPLIT, 2.0X15 2
27 90131KWPF00 PIN, PILLION STEP 2
28 957011003000 BOLT, FLANGE, 10X30 2
29 958010602807 BOLT, FLANGE, 6X28 2
