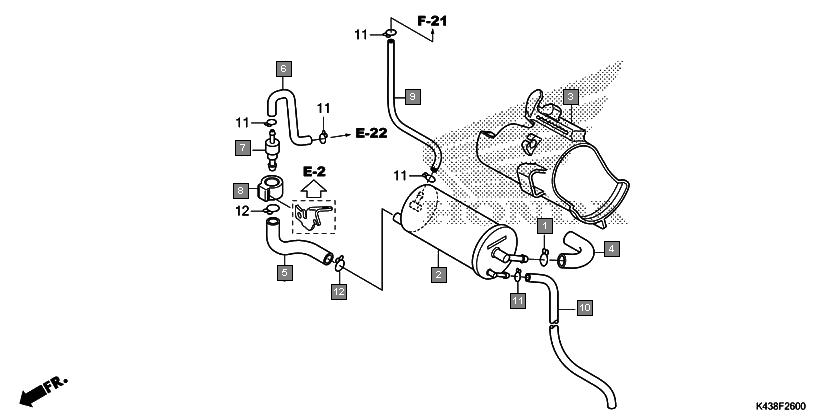

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16163K43900 | CLIP | 1 |
2 | 17310K43903 | CANISTER COMP | 1 |
3 | 17311K43900 | RUBBER, CANISTER | 1 |
4 | 17412K0ED00 | TUBE, AIR | 1 |
5 | 17413K43900 | TUBE, CANISTER PURGE | 1 |
6 | 17417K43900 | TUBE, CARBURETOR PURGE | 1 |
7 | 17440K43901 | VALVE, ONE WAY | 1 |
8 | 17441K43900 | RUBBER, ONE WAY VALVE | 1 |
9 | 950014526040 | TUBE, FUEL, 4.5X260 (95001-45001-60M) | 1 |
10 | 950014549040 | TUBE, FUEL, 4.5X490 (95001-45001-60M) | 1 |
11 | 90652KWPF00 | CLIP, TUBE(B8) | 5 |
12 | 9500202120 | CLIP, TUBE(B12) | 2 |
