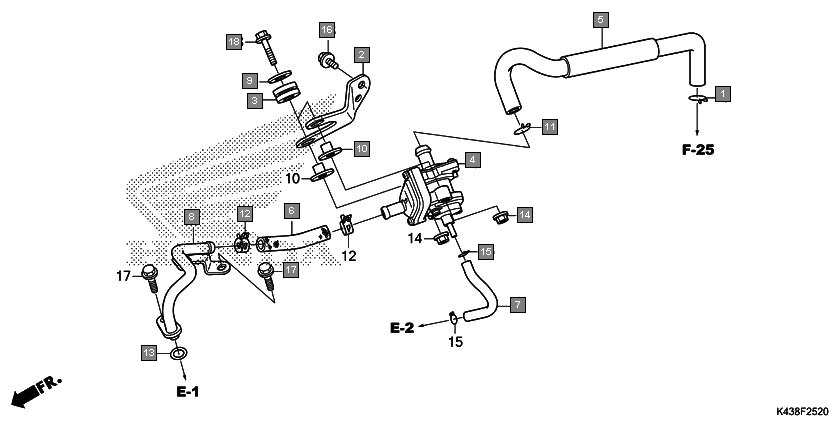

Motorcycles CB Hornet 160R CBF160MAK Frame Air suction valve
Ref.No. Part No. Description Oty
1 15772GW3980 CLIP, BREATHER TUBE 1
2 17365K38900 PLATE, AIR SUCTION VALVE SETTING 1
3 17622GB7900 RUBBER, CUSHION 2
4 18600K38901 VALVE ASSY., AIR SUCTION 1
5 18601K38900 TUBE, SUCTION 1
6 18602K38900 TUBE, REED VALVE 1
7 18603K38900 TUBE, PB 1
8 18640K38900 PIPE COMP., AIR FEED 1
9 90417KSP900 WASHER, AIR SUCTION VALVE 2
10 90502KEZ900 COLLAR, CUSHION RUBBER 2
11 90646657000 CLIP, AIR HOSE, 16MM 1
12 90678K14600 CLIP, HOSE 2
13 91309MJ0003 O-RING, 9.8X2.8(ARAI) 1
14 9405006000 NUT, FLANGE, 6MM 2
15 90651KWPF00 CLIP, TUBE(B7) 2
16 957010601207 BOLT, FLANGE, 6X12 1
17 957010601600 BOLT, FLANGE, 6X16 2
18 957010603000 BOLT, FLANGE, 6X30 2
