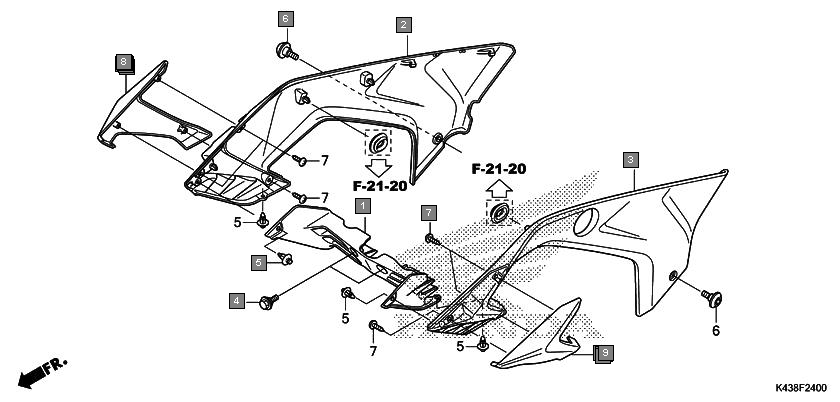

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50271K43900 | GARNISH, SHROUD CENTER | 1 |
2 | 83560K43901ZA | COVER SET, R. SIDE(WL)*TYPE1* | 1 |
3 | 83571K43D00 | COVER, L. SIDE | 1 |
4 | 90111187000 | BOLT, FLANGE, 6MM | 2 |
5 | 90116SP0003 | CLIP, BUMPER SEAL | 4 |
6 | 90134K43900 | SCREW, PAN, 5X14 | 2 |
7 | 9390324380 | SCREW, TAPPING, 4X12 | 6 |
8 | 50241K43900ZG | GARNISH, R. SHROUD *PB396M* ATHLETIC BLUE METALLIC | 1 |
9 | 50241K43900ZB | GARNISH, R. SHROUD *Y196* LEMON ICE YELLOW | 1 |
10 | 50241K43900ZF | GARNISH, R. SHROUD *R321* SPORTS RED | 1 |
11 | 50241K43900ZD | GARNISH, R. SHROUD *NHB63P*..PEARL AMAZING WHITE | 1 |
12 | 50241K43900ZC | GARNISH, R. SHROUD *YR250* VIBRANT ORANGE | 1 |
13 | 50241K43900ZA | GARNISH, R. SHROUD *NHB06M* SPACE SILVER METALLIC | 1 |
14 | 50241K43900ZE | GARNISH, R. SHROUD *Y230M* DAZZLE YELLOW METALLIC | 1 |
15 | 50251K43900ZE | GARNISH, L. SHROUD *NHB63P* *Y230M* DAZZLE YELLOW METALLIC | 1 |
16 | 50251K43900ZD | GARNISH, L. SHROUD *NHB63P*..PEARL AMAZING WHITE | 1 |
17 | 50251K43900ZG | GARNISH, L. SHROUD *R321* *PB396M* ATHLETIC BLUE METALLIC | 1 |
18 | 50251K43900ZF | GARNISH, L. SHROUD *Y230M* *R321* SPORTS RED | 1 |
19 | 50251K43900ZB | GARNISH, L. SHROUD *Y196* LEMON ICE YELLOW | 1 |
20 | 50251K43900ZC | GARNISH, L. SHROUD *YR250* VIBRANT ORANGE | 1 |
21 | 50251K43900ZA | GARNISH, L. SHROUD *NHB06M* SPACE SILVER METALLIC | 1 |
