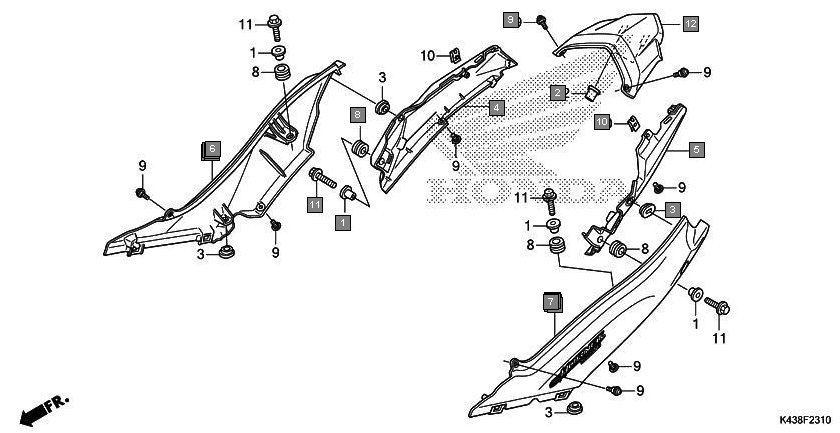

Motorcycles CB Hornet 160R CBF160MAK Frame Rear cowl
Ref.No. Part No. Description Oty
1 17232KYJ900 COLLAR, AIR CLEANER MOUNTING 4
2 33706K38900 GROMMET, TAILLIGHT 2
3 64413KSSC00 GROMMET, BODY COVER 4
4 77211K43900 COWL, R. RR. 1
5 77221K43900 COWL, L. RR. 1
6 77270K43D40ZA GARNISH SET, R. RR.(WL) *TYPE4* 1
7 77270K43D60ZA GARNISH SET, R. RR.(WL) *NHB06M* SPACE SILVER METALLIC *TYPE5* 1
8 77270K43D40ZB GARNISH SET, R. RR.(WL) *TYPE3* 1
9 77270K43D40ZD GARNISH SET, R. RR.(WL) *TYPE1* 1
10 77270K43D60ZD GARNISH SET, R. RR.(WL) *NHB06M* SPACE SILVER METALLIC *TYPE2* 1
11 77270K43D40ZC GARNISH SET, R. RR.(WL) *TYPE2* 1
12 77270K43D60ZC GARNISH SET, R. RR.(WL) *NHB06M* SPACE SILVER METALLIC *TYPE3* 1
13 77270K43D60ZE GARNISH SET, R. RR.(WL) *NHB06M* SPACE SILVER METALLIC *TYPE1* 1
14 77270K43D60ZB GARNISH SET, R. RR.(WL) *NHB06M* SPACE SILVER METALLIC *TYPE4* 1
15 77280K43D40ZD GARNISH SET, L. RR.(WL) *TYPE1* 1
16 77280K43D40ZA GARNISH SET, L. RR.(WL) *TYPE4* 1
17 77280K43D60ZC GARNISH SET, L. RR.(WL) *NHB06M* SPACE SILVER METALLIC *tYPE3* 1
18 77280K43D40ZB GARNISH SET, L. RR.(WL) *TYPE3* 1
19 77280K43D60ZA GARNISH SET, L. RR.(WL) *NHB06M* SPACE SILVER METALLIC *tYPE5* 1
20 77280K43D60ZE GARNISH SET, L. RR.(WL) *NHB06M* SPACE SILVER METALLIC *tYPE1* 1
21 77280K43D40ZC GARNISH SET, L. RR.(WL) *TYPE2* 1
22 77280K43D60ZD GARNISH SET, L. RR.(WL) *NHB06M* SPACE SILVER METALLIC *tYPE2* 1
23 77280K43D60ZB GARNISH SET, L. RR.(WL) *NHB06M* SPACE SILVER METALLIC *tYPE4* 1
24 83545KCJ690 RUBBER, SIDE COVER 4
25 90101GE0000 SCREW, HINGE PATCH 8
26 90320KTE600 NUT, SPRING, 5MM 2
27 957010602000 BOLT, FLANGE, 6X20 4
28 77231K43900 COWL, RR. CENTER 1
