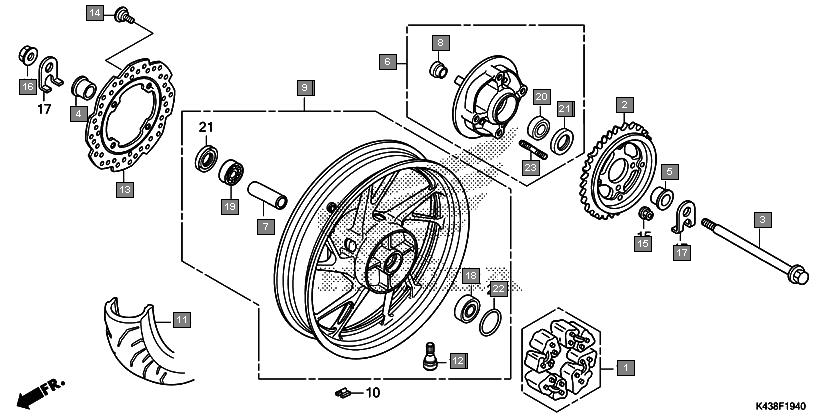

Motorcycles CB Hornet 160R CBF160MAK Frame Rear wheel(disk brake)
Ref.No. Part No. Description Oty
1 06410KSP900 DAMPER SET, WHEEL 1
2 41200K43D00 SPROCKET COMP., FINAL DRIVEN (47T) 1
3 42301K43900 AXLE, RR. WHEEL 1
4 42312KYJ900 COLLAR, R. RR. WHEEL SIDE 1
5 42313KYJ900 COLLAR, L. RR. WHEEL SIDE 1
6 42615K43D00ZA FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC 1
7 42620KYJ900 COLLAR, RR. WHEEL DISTANCE 1
8 42625MC4000 COLLAR B, RR. AXLE DISTANCE 1
9 42650K43D70ZE WHEEL SUB ASSY., RR. *NH303M * MAT AXIS GRAY METALLIC 1
10 42650K43D70ZD WHEEL SUB ASSY., RR. *NH303M 1* MAT AXIS GRAY METALLIC 1
11 42650K43D50ZB WHEEL SUB ASSY., RR.(WL) *NH303M 2*. MAT AXIS GRAY METALLIC 1
12 42650K43D70ZB WHEEL SUB ASSY., RR. *NH303M 3* MAT AXIS GRAY METALLIC 1
13 42650K43D70ZC WHEEL SUB ASSY., RR. *NH303M 2* MAT AXIS GRAY METALLIC 1
14 42650K43D70ZA WHEEL SUB ASSY., RR. *NH303M 4* MAT AXIS GRAY METALLIC 1
15 42650K43D50ZA WHEEL SUB ASSY., RR.(WL) *NH303M 3*. MAT AXIS GRAY METALLIC 1
16 42650K43D50ZD WHEEL SUB ASSY., RR.(WL) *NH303M*. MAT AXIS GRAY METALLIC 1
17 42650K43D50ZC WHEEL SUB ASSY., RR.(WL) *NH303M 1*. MAT AXIS GRAY METALLIC 1
18 42711K43901 TIRE, RR.(MRF) (140/70-17 M/C 66S) 1
19 42753K24G11 VALVE, RIM(ACCURA) 1
20 42753KWF901 VALVE, RIM(TRITON) 1
21 43251K43911 DISK, RR. BRAKE(YUTAKA) 1
22 90105KSP870 BOLT, DISK, 8X24 4
23 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 4
24 90305KYJ711 NUT, FLANGE, 16MM (PREVAILING TORQUE) 1
25 90559KYJ900 WASHER, RR. SWINGARM 2
26 91051K43901 BEARING, RADIAL BALL, 6203U (NBC) 1
27 91052K43901 BEARING, RADIAL BALL, 6303U (NBC) 1
28 91082KYJ711 BEARING, RADIAL BALL, 6204UU (NEI) 1
29 91253443761 DUST SEAL, 30X47X8(ARAI) 2
30 91253443762 DUST SEAL, 30X47X8(NOK) 2
31 91352KSP900 O-RING, 51X2 1
32 90128K45N00 BOLT, STUD, 10X22 4
