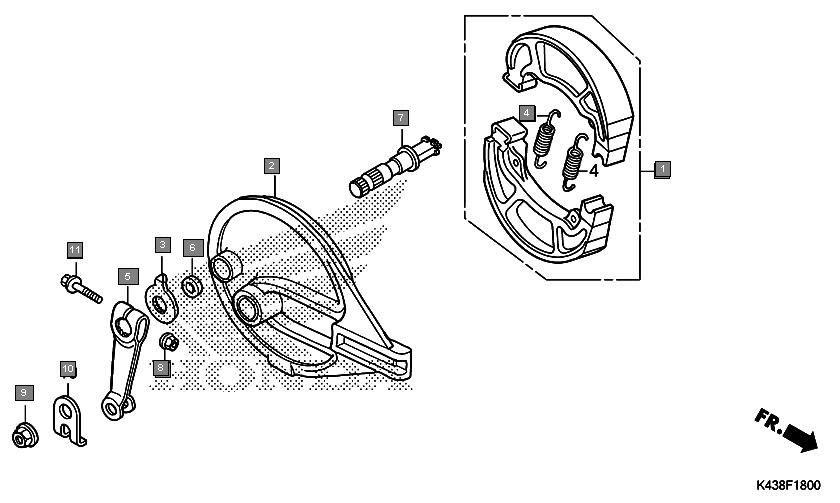

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06430KVTD10 | SHOE SET, BRAKE(ASK) | 1 |
| 2 | 06430KTN700 | SHOE SET, BRAKE(JB) | 1 |
| 3 | 43100K43900ZA | PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 4 | 43145K38900 | INDICATOR, RR. BRAKE | 1 |
| 5 | 45133KCC900 | SPRING, FR. BRAKE SHOE (FOR RR.) | 2 |
| 6 | 43151329000 | SPRING, BRAKE SHOE (ASK) | 2 |
| 7 | 45133KPL900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 |
| 8 | 43410KRY930 | ARM, RR. BRAKE | 1 |
| 9 | 45134250000 | DUST SEAL, BRAKE CAM | 1 |
| 10 | 45141KTC900 | CAM, FR. BRAKE | 1 |
| 11 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 1 |
| 12 | 90301KGH901 | NUT, U, 6MM(FUJI SEIMITSU) | 1 |
| 13 | 90305KYJ711 | NUT, FLANGE, 16MM (PREVAILING TORQUE) | 1 |
| 14 | 90559KYJ900 | WASHER, RR. SWINGARM | 1 |
| 15 | 957010603500 | BOLT, FLANGE, 6X35 | 1 |
| 16 | 957020603500 | BOLT, FLANGE, 6X35 | 1 |
