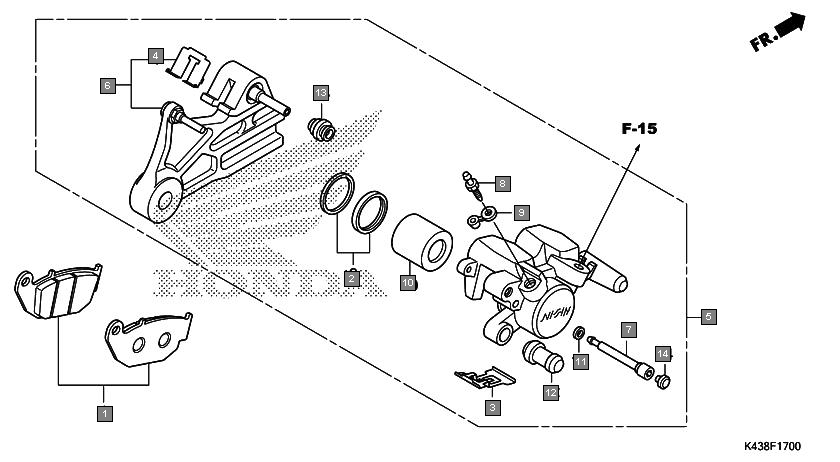

Motorcycles CB Hornet 160R CBF160MAK Frame Rear brake caliper
Ref.No. Part No. Description Oty
1 06435KSPB02 PAD SET, RR 1
2 06451961405 SEAL SET, PISTON 1
3 43108KSPB51 SPRING, PAD(NISSIN) 1
4 43112KSPB01 RETAINER 1
5 43150K43911 CALIPER SUB ASSY., RR.(NISSIN) 1
6 43190K43911 BRACKET SUB ASSY., RR. 1
7 43215KGH901 PIN, HANGER 1
8 43352568003 SCREW, BLEEDER(NISSIN) 1
9 43353461771 CAP, BLEEDER 1
10 45107MA6006 PISTON 1
11 45111MAJG41 RING, STOPPER 1
12 45132166016 BOOT, PIN BUSH(NISSIN) 1
13 45133MA3006 BOOT B 1
14 45203MCC006 PLUG, PIN 1
