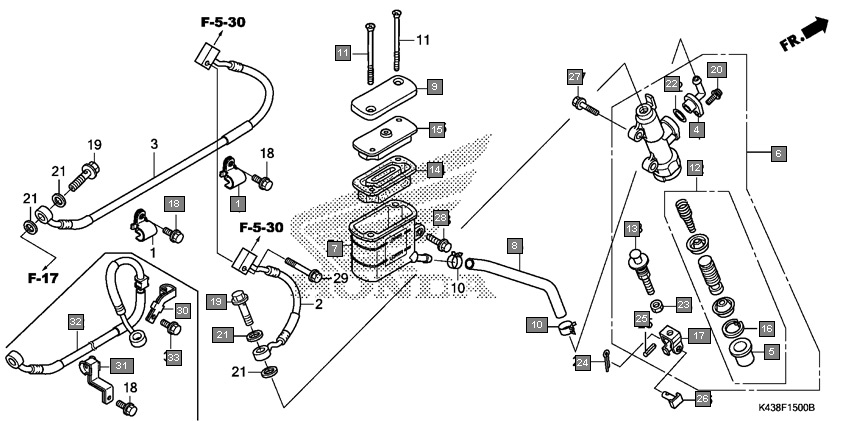

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 43155K15900 | CLAMPER, RR. BRAKE HOSE | 1 |
| 2 | 43503MERD01 | CONNECTOR, MASTER CYLINDER | 1 |
| 3 | 43504MB2006 | BOOT COMP. | 1 |
| 4 | 43510K43D31 | CYLINDER SUB ASSY., RR. MASTER (NISSIN) | 1 |
| 5 | 43511K43D31 | CUP COMP., OIL | 1 |
| 6 | 43512K43D31 | HOSE, RR. MASTER CYLINDER | 1 |
| 7 | 43513KBP881 | CAP, MASTER CYLINDER | 1 |
| 8 | 43514KS6701 | CLAMP, MASTER CYLINDER OIL HOSE | 2 |
| 9 | 90140K43D31 | SCREW, FLAT, 4X50 | 2 |
| 10 | 43520MJ6315 | PISTON SET, MASTER CYLINDER (NISSIN) | 1 |
| 11 | 43530KYZ911 | ROD COMP., PUSH | 1 |
| 12 | 45520GW0911 | DIAPHRAGM | 1 |
| 13 | 45521GW0911 | PLATE, DIAPHRAGM | 1 |
| 14 | 46182MELD21 | CIRCLIP | 1 |
| 15 | 46504KV6702 | JOINT, BRAKE ROD | 1 |
| 16 | 90102KGH900 | BOLT, FLANGE, 6X10 | 1 |
| 17 | 90145GAZ981 | BOLT, OIL, 10X22 | 2 |
| 18 | 90508K21921 | SCREW-WASHER, 4X12 | 1 |
| 19 | 90545300000 | WASHER, OIL BOLT | 4 |
| 20 | 91212422006 | O-RING, 14.8X2.4 | 1 |
| 21 | 94002080000S | NUT, HEX., 8MM | 1 |
| 22 | 9420120120 | PIN, SPLIT, 2.0X12 | 1 |
| 23 | 9430520102 | PIN, SPRING, 2X10 | 1 |
| 24 | 9501554000 | PIN D, JOINT | 1 |
| 25 | 957010602208 | BOLT, FLANGE, 6X22 | 2 |
| 26 | 957010601408 | BOLT, FLANGE, 6X14 | 1 |
| 27 | 43155K43D30 | CLAMPER, RR. BRAKE HOSE | 1 |
| 28 | 43156K43D30 | GUIDE, RR. BRAKE HOSE | 1 |
| 29 | 43310K43D31 | HOSE COMP., RR. BRAKE | 1 |
| 30 | 960010601200 | BOLT, FLANGE, 6X12 | 1 |
