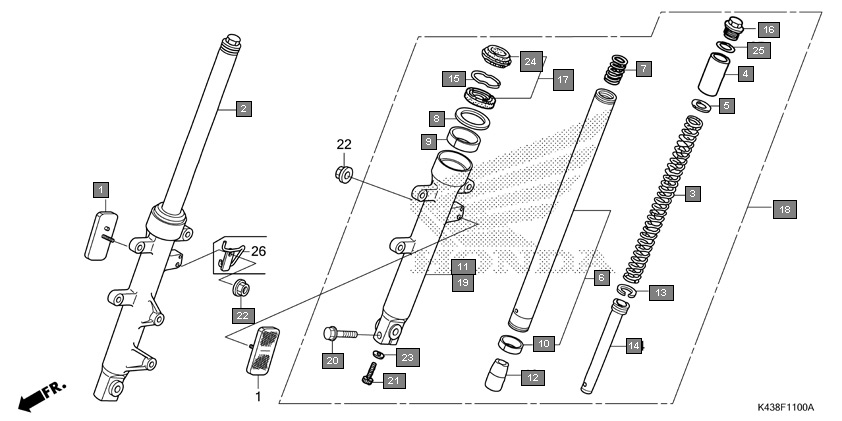

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33740KZK951 | REFLECTOR, FR. SIDE REFLEX | 2 |
2 | 51400K43D21 | FORK ASSY., R. FR.(SHOWA) | 1 |
3 | 51401K43D01 | SPRING, FR. CUSHION | 2 |
4 | 51402KYJ711 | COLLAR, SPRING | 2 |
5 | 51403ME4003 | SEAT, SPRING | 2 |
6 | 51410K43D01 | PIPE COMP., FR. FORK | 2 |
7 | 51411K43D01 | SPRING, REBOUND | 2 |
8 | 51412461003 | RING, BACK UP | 2 |
9 | 51414KFB901 | BUSH, GUIDE | 2 |
10 | 51415KFB901 | BUSH, SLIDER | 2 |
11 | 51420K43D21 | CASE, R. BOTTOM | 1 |
12 | 51432K43901 | PIECE, OIL LOCK | 2 |
13 | 51437K43D01 | RING, PISTON | 2 |
14 | 51440K43D01 | PIPE, SEAT | 2 |
15 | 51447KR6003 | RING, OIL SEAL STOPPER | 2 |
16 | 51450K43D01 | BOLT, FR. FORK | 2 |
17 | 51490KWL003 | SEAL SET, FR. FORK | 2 |
18 | 51500K43D01 | FORK ASSY., L. FR.(SHOWA) | 1 |
19 | 51520K43901 | CASE, L. BOTTOM | 1 |
20 | 90109MR7000 | BOLT, FLANGE, 8X45 | 1 |
21 | 90116KV3701 | BOLT, SOCKET, 8MM(SHOWA) | 2 |
22 | 90301KWN901 | NUT, U, 5MM | 2 |
23 | 90544283000 | WASHER, SPECIAL, 8MM(SHOWA) | 2 |
24 | 91254KAZ003 | SEAL, DUST | 2 |
25 | 91356MJ6741 | O-RING, 30.2X2.4 | 2 |
