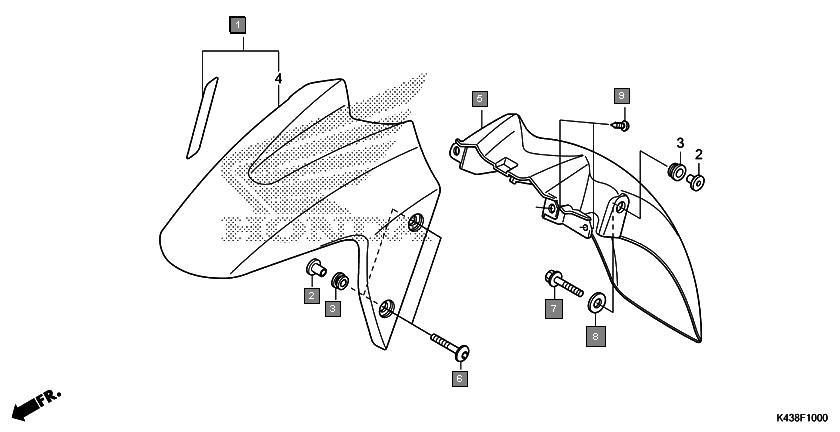

Motorcycles CB Hornet 160R CBF160MAK Frame Front fender
Ref.No. Part No. Description Oty
1 61000K43D20ZD FENDER SET A, FR.(WL) *TYPE1* 1
2 61000K43D20ZA FENDER SET A, FR.(WL) *TYPE4* 1
3 61000K43D20ZC FENDER SET A, FR.(WL) *TYPE2* 1
4 61000K43D20ZB FENDER SET A, FR.(WL) *TYPE3* 1
5 61103KRY900 COLLAR A, FR. FENDER 6
6 61105KRY900 RUBBER, FR. FENDER MOUNTING 6
7 61121K43900 FENDER B, FR. 1
8 90130KYJ900 SCREW, PAN, 6X22 4
9 90131KYJ900 BOLT, FLANGE, 6X22 2
10 90485286000 WASHER, 6MM 2
11 9390325280 SCREW, TAPPING, 5X12 4
