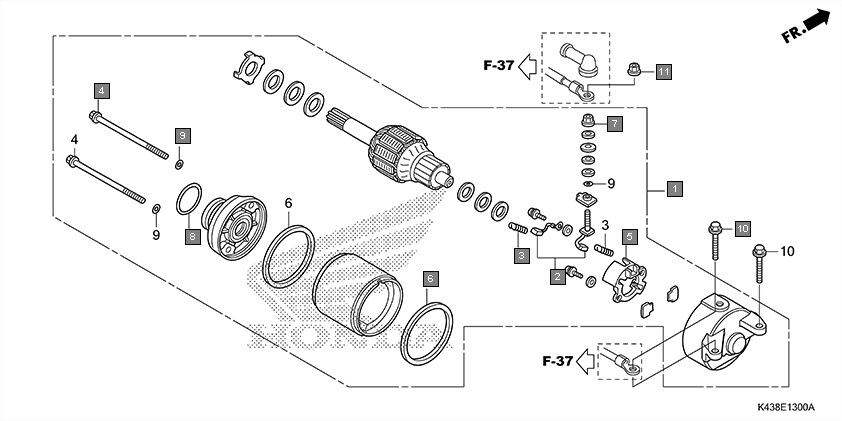

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31200K38901 | MOTOR ASSY., STARTER(MITSUBA) | 1 |
2 | 31201KPTA01 | TERMINAL SET, BRUSH | 1 |
3 | 31204KG8004 | SPRING, CARBON BRUSH | 2 |
4 | 31205KTC921 | BOLT, SETTING | 2 |
5 | 31206KPH881 | HOLDER, BRUSH | 1 |
6 | 31207MBE008 | RING | 2 |
7 | 90071MB0000 | NUT-WASHER, 6MM | 1 |
8 | 91309425003 | O-RING, 24.4X3.1(ARAI) | 1 |
9 | 91320MB0000 | O-RING, 4X2 | 3 |
10 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
11 | 90071KTED00 | NUT-WASHER, 6MM | 1 |
