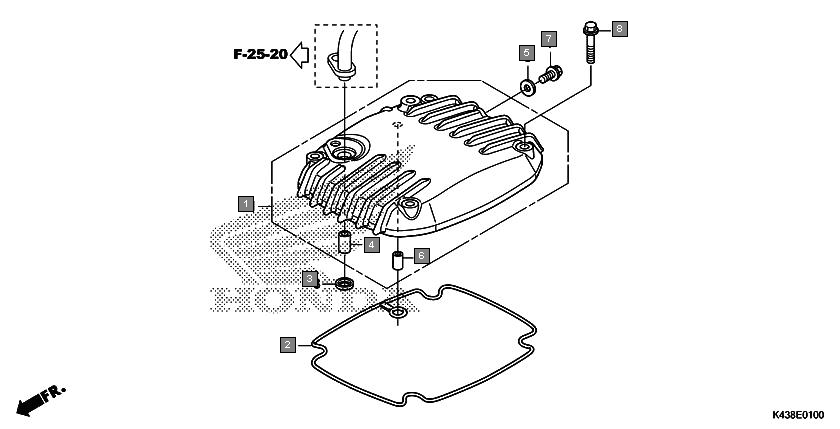

Motorcycles CB Hornet 160R CBF160MAK Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12310K38900 COVER COMP., CYLINDER HEAD 1
2 12391K38900 GASKET, HEAD COVER 1
3 12397KWG601 GASKET C, HEAD COVER 1
4 12398KSPB00 COLLAR, 10MM 1
5 90463KRM840 WASHER, SEALING, 6.2X12X1.2 1
6 9430107120 PIN A, DOWEL, 7X12 1
7 960010601200 BOLT, FLANGE, 6X12 1
8 960010603500 BOLT, FLANGE, 6X35 4
