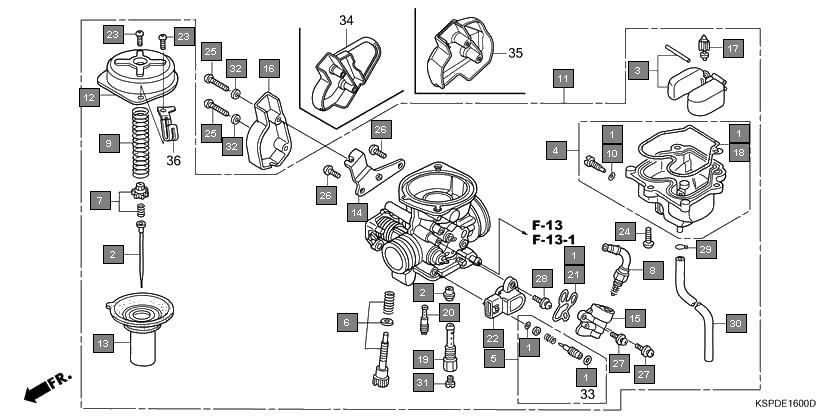

Motorcycles CB Unicorn CBF150M9 Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012KSP911 NEEDLE SET, JET 1
3 16013KRC921 FLOAT SET 1
4 16015KSP911 CHAMBER SET, FLOAT 1
5 16016KSP911 SCREW SET A 1
6 16028KPP901 SCREW SET B 1
7 16037KPP861 PLATE SET, VALVE 1
8 16046KSP911 VALVE SET, STARTER 1
9 16050KSP911 SPRING, COMPRESSION COIL 1
10 16075KRP981 O-RING 1
11 16100KSP913 CARBURETOR ASSY.(AVK4FA C) 1
12 16107KGF911 TOP 1
13 16111KSP912 PISTON COMP., VACUUM 1
14 16119KSP911 STAY, WIRE 1
15 16140KPP901 BODY COMP., BYSTARTER 1
16 16155KFR701 VALVE COMP., FLOAT 1
17 16163KRP981 GASKET, FLOAT CHAMBER 1
18 16165KSP911 HOLDER, NEEDLE JET 1
19 16180KGF911 JET, SLOW, #38 1
20 16423KGH901 GASKET, BYSTARTER 1
21 37890GET003 SENSOR ASSY., THROTTLE 1
22 93500040081H SCREW, PAN, 4X8 2
23 93500040121H SCREW, PAN, 4X12 3
24 93500040250G SCREW, PAN, 4X25 2
25 93500050121H SCREW, PAN, 5X12 2
26 938920501218 SCREW-WASHER, 5X12 2
27 938930501618 SCREW-WASHER, 5X16 1
28 9500202089 CLIP, TUBE(B8) 1
29 950054548050 TUBE, 4.5X480(95005-45001-50M) 1
30 99101MAZ1150 JET, MAIN, #115 1
31 9410104700 WASHER, PLAIN, 4MM 2
32 16150KSP860 COVER, THROTTLE CABLE 1
