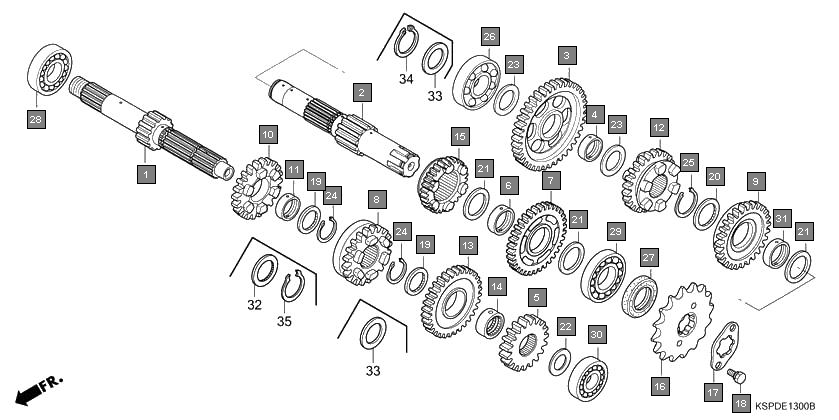

Motorcycles CB Unicorn CBF150M9 Engine Transmission
Ref.No. Part No. Description Oty
1 23210KSP910 MAINSHAFT COMP., TRANSMISSION (13T) 1
2 23220KSP910 COUNTERSHAFT COMP. 1
3 23421KSP910 GEAR, COUNTERSHAFT LOW(40T) 1
4 23427KRM840 BUSH, 17X20.5X8.0 1
5 23431KRM840 GEAR, MAINSHAFT SECOND(19T) 1
6 23432KRM840 BUSH, 20MM 1
7 23441KRM840 GEAR, COUNTERSHAFT SECOND(34T) 1
8 23451KTN900 GEAR, MAINSHAFT THIRD(23T) 1
9 23461KTN900 GEAR, COUNTERSHAFT THIRD(30T) 1
10 23471KSP910 GEAR, MAINSHAFT FOURTH(22T) 1
11 23472KSP910 BUSH, 17MM 1
12 23481KTN900 GEAR, COUNTERSHAFT FOURTH(24T) 1
13 23491KSP860 GEAR, MAINSHAFT FIFTH(32T) 1
14 23492KSP910 COLLAR, SPLINE, 17X20X11 1
15 23501KSP860 GEAR, COUNTERSHAFT FIFTH(30T) 1
16 23801KSP930 SPROCKET, DRIVE(15T) 1
17 23811KR3600 PLATE A2, FIXING 1
18 90084041000 BOLT, DRIVE SPROCKET FIXING 2
19 90452KRM840 WASHER, SPLINE, 17X23X1.6 2
20 90453KRM840 WASHER, SPLINE, 20MM 1
21 90454107000 WASHER, THRUST, 20MM 3
22 90456KRM840 WASHER, THRUST, 12MM 1
23 90452GB4770 WASHER, THRUST, 17MM 2
24 90601KRM840 CIRCLIP, 17MM 2
25 90605200000 SET RING, 20MM 1
26 91003KSP910 BEARING, RADIAL BALL, 17X42X12 1
27 91216KSP911 OIL SEAL, 20X34X7(ARAI) 1
28 91004KTN900 BEARING, RADIAL BALL, 17X40X12 1
29 91006KTN900 BEARING, RADIAL BALL, 20X47X14 1
30 91005KTN900 BEARING, RADIAL BALL, 12X32X10 1
