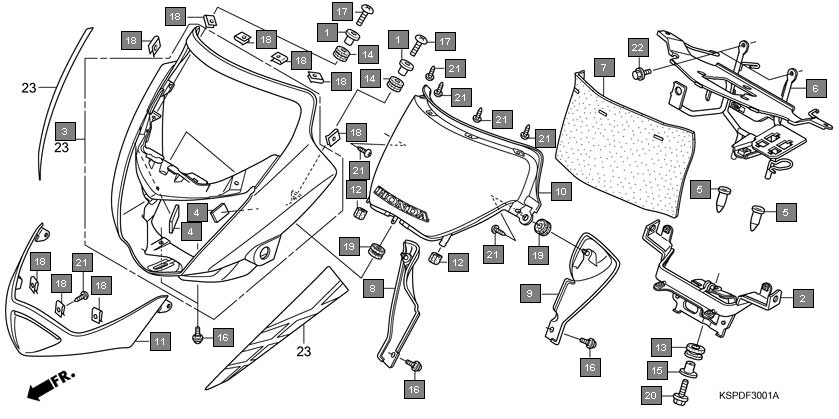

Motorcycles CB Unicorn CBF150M7 Frame Front cowl(cbf1507/m7/m9/ma)
Ref.No. Part No. Description Oty
1 19052KV0000 COLLAR, RADIATOR MOUNTING 2
2 33610KSP860 STAY COMP., FR. WINKER 1
3 61301KSP860ZA COWL, FR. *NH1* BLACK 1
4 61301KSP860ZC COWL, FR. *R195C* CANDY BLAZING RED 1
5 61301KSP860ZD COWL, FR. *NH411M* FORCE SILVER METALLIC 1
6 61304KSP900 RUBBER, FR. COWL 2
7 61312KCT690 BOOT, HEADLIGHT STAY 2
8 61312KSP860 STAY COMP., FR. COWL 1
9 61313KSP860 RUBBER, METER 1
10 61330KSP860 PANEL, R. INNER 1
11 61340KSP860 PANEL, L. INNER 1
12 64100KSP870ZA WINDSCREEN SET(WL) *TYPE1* 1
13 64100KSP870ZB WINDSCREEN SET(WL) *TYPE2* 1
14 67111KSP860 GARNISH, SCREEN 1
15 77267KTR900 RUBBER, COWL 2
16 80101283000 RUBBER, RR. FENDER CUSHION 1
17 83545KCJ690 RUBBER, SIDE COVER 2
18 84706163670 COLLAR, TAILLIGHT MOUNTING 1
19 90101GE0000 SCREW, HINGE PATCH 4
20 90107KSP900 SCREW, COWL SETTING(A) 2
21 90344KTE910 NUT, CLIP, 4MM 9
22 90671KSP860 GROMMET, PANEL 3
23 92301060200A BOLT, RECESSED, 6X20 1
24 9390324380 SCREW, TAPPING, 4X12 9
25 957010601200 BOLT, FLANGE, 6X12 2
