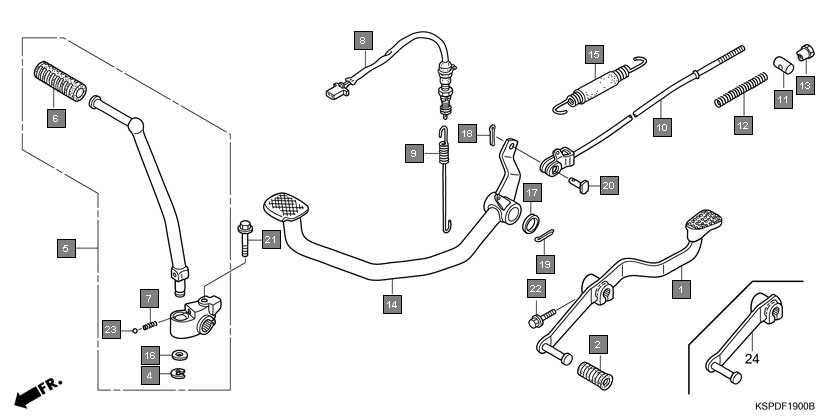

Motorcycles CB Unicorn CBF150M7 Frame Pedal(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 24701KSP900 PEDAL, GEAR CHANGE 1
2 24781KSP860 RUBBER, CHANGE PEDAL 1
3 28293333000 CLIP, KICK STARTER ARM 1
4 28300KSP900 ARM ASSY., KICK STARTER 1
5 28311KC5000 RUBBER, KICK STARTER 1
6 28333KK0000 SPRING, KICK STARTER 1
7 35350KSP861 SWITCH ASSY., RR. STOP 1
8 35350KSP860 SWITCH ASSY., RR. STOP 1
9 35357KSP900 SPRING, STOP SWITCH 1
10 43451KSP900 ROD COMP., RR. BRAKE 1
11 43455KSP900 JOINT, BRAKE ARM 1
12 43456KSP900 SPRING, BRAKE ROD 1
13 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
14 46500KSP901 PEDAL, BRAKE 1
15 46510KSP900 SPRING SET, BRAKE PEDAL 1
16 90505KRM860 WASHER, 15.5X22 1
17 90521028000 WASHER, 17X22 1
18 9420120120 PIN, SPLIT, 2.0X12 1
19 9420130300 PIN, SPLIT, 3.0X30 1
20 9501553000 PIN C, JOINT 1
21 957010803500 BOLT, FLANGE, 8X35 1
22 960010602000 BOLT, FLANGE, 6X20 1
23 9621108000 BALL, STEEL, #8(1/4) 1
