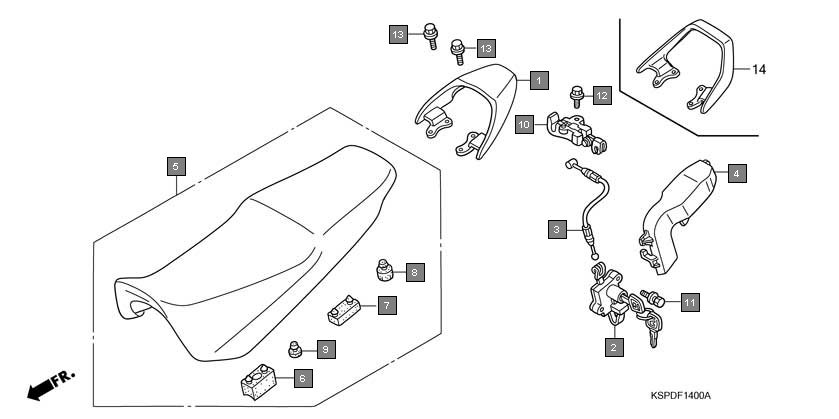

Motorcycles CB Unicorn CBF150M7 Frame Seat(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 77110KSP911 LOCK ASSY., SEAT 1
2 77156KSP900 CABLE, SEAT LOCK 1
3 77160KSP900 COVER, SEAT LOCK CABLE 1
4 77200KSP901 SEAT COMP., DOUBLE 1
5 77204KCC900 RUBBER A, SEAT SETTING 2
6 77205286000 RUBBER B, SEAT SETTING 2
7 77206KFN850 RUBBER, SEAT CUSHION 2
8 77215GC2000 RUBBER B, SEAT STOPPER 2
9 77220KY6010 HOOK, SEAT CATCH 1
10 90107GZ4670 BOLT, BREAK OFF 2
11 957010601200 BOLT, FLANGE, 6X12 1
12 957010802000 BOLT, FLANGE, 8X20 4
13 50400KSP860ZA GRIP, RR. *NH1* BLACK 1
14 50400KSP860ZD GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
