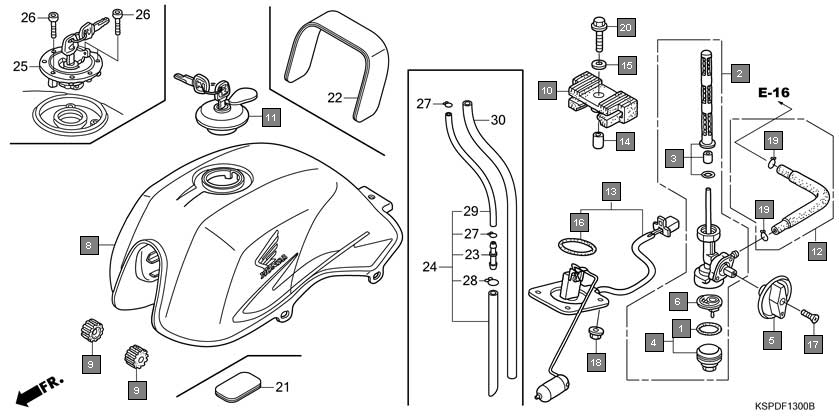

Motorcycles CB Unicorn CBF150M7 Frame Fuel tank(cbf1505/m5/6/m6/7/m7/m9/ma)
Ref.No. Part No. Description Oty
1 16173001004 PACKING, FUEL STRAINER CUP 1
2 16950KSP900 COCK ASSY., FUEL 1
3 16952KSP900 SCREEN SET, FUEL STRAINER 1
4 16953GT4305 CUP SET, FUEL STRAINER 1
5 16955KSP900 LEVER, FUEL COCK 1
6 16959HB3005 FILTER, CUP 1
7 17520KSP870ZA TANK SET, FUEL(WL) *TYPE1* 1
8 17520KSP870ZB TANK SET, FUEL(WL) *TYPE2* 1
9 17520KSP870ZC TANK SET, FUEL(WL) *TYPE3* 1
10 17520KSP870ZD TANK SET, FUEL(WL) *TYPE4* 1
11 17520KSP870ZE TANK SET, FUEL(WL) *TYPE5* 1
12 17611KFN850 CUSHION, FR. FUEL TANK 2
13 17613KSP900 CUSHION, FUEL TANK RR. 1
14 17681KSP860 TUBE, FUEL 1
15 37080KSP860 FUEL UNIT SET 1
16 80101KFN850 COLLAR, 8X12 1
17 90534MV4000 WASHER, 8.5X28 1
18 91305443740 O-RING, 39.5X5 1
19 93500040250G SCREW, PAN, 4X25 1
20 9405006000 NUT, FLANGE, 6MM 4
21 9500202100 CLIP, TUBE(B10) 2
22 957010802508 BOLT, FLANGE, 8X25 1
23 17504KSP860 FILM, TANK PROTECTOR 1
24 17519KSP860 PROTECTOR, FUEL TANK 1
25 17525KVE900 JOINT, TUBE 1
26 17530KSP860 TUBE ASSY., BREATHER 1
27 17620KSP861 CAP COMP., FUEL FILLER 1
28 90111KSP860 BOLT, SOCKET, 4X21 3
29 9500202080 CLIP, TUBE(B8) 2
30 9500202130 CLIP, TUBE(B12.5) 1
31 950054540020 TUBE, 4.5X400(95005-45001-20M) 1
32 950058070020 TUBE, 8X700(95005-80001-20M) 1
