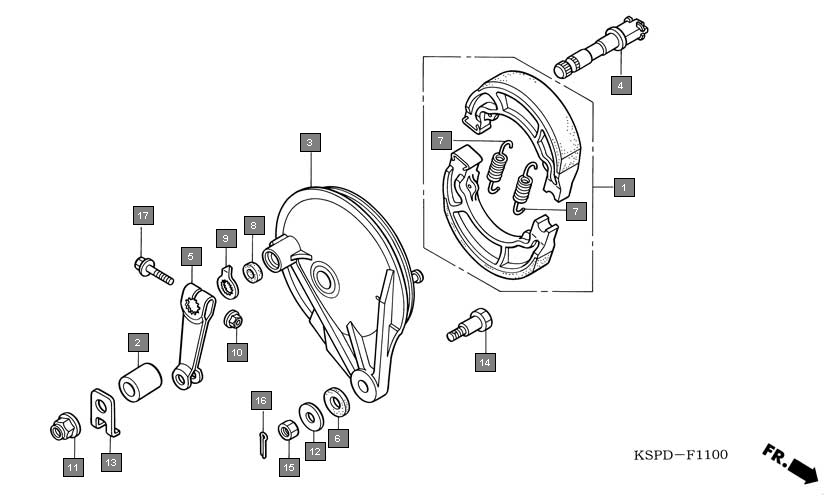

Motorcycles CB Unicorn CBF150M7 Frame Rear brake panel
Ref.No. Part No. Description Oty
1 06430KRP980 SHOE SET, BRAKE(ASK) 1
2 42313240000 COLLAR, RR. BRAKE PANEL SIDE 1
3 43100KSP900ZC PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
4 43141KSP900 CAM, RR. BRAKE 1
5 43410KSP900 ARM, RR. BRAKE 1
6 43434ME1670 RUBBER, STOPPER ARM 1
7 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
8 45134250000 DUST SEAL, BRAKE CAM 1
9 45145KFM900 INDICATOR, FR. BRAKE (FOR RR.) 1
10 90301KGH901 NUT, U, 6MM(FUJI SEIMITSU) 1
11 90305KCJ951 NUT, U, 14MM(FUJI SEIMITSU) 1
12 90505425000 WASHER, 8MM 1
13 90560KSP900 WASHER, R. RR. AXLE 1
14 9281110000 BOLT A, BRAKE STOPPER 1
15 94001080000S NUT, HEX., 8MM 1
16 9420120150 PIN, SPLIT, 2.0X15 1
17 957010603500 BOLT, FLANGE, 6X35 1
