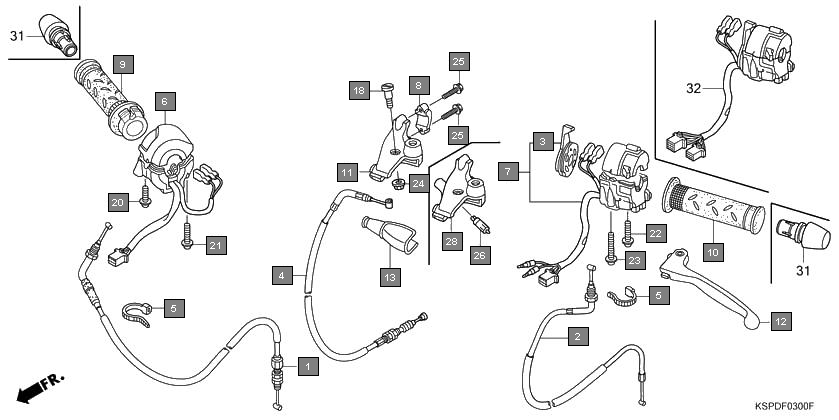

Motorcycles CB Unicorn CBF150M7 Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KSP901 CABLE COMP., THROTTLE 1
2 17910KSP900 CABLE COMP., THROTTLE 1
3 17950KSP900 CABLE COMP., CHOKE 1
4 17962KSP900 LEVER COMP., CHOKE 1
5 22870KSP901 CABLE COMP., CLUTCH 1
6 32161KSP920 BAND B1, WIRE 2
7 35150KSP920 SWITCH ASSY., LIGHTING & STARTER 1
8 35150KSP910 SWITCH ASSY., LIGHTING 1
9 35200KSP920 SWITCH ASSY., WINKER 1
10 35200KSP910 SWITCH ASSY., WINKER 1
11 45517166006 HOLDER, MASTER CYLINDER 1
12 53140KSP900 GRIP COMP., THROTTLE 1
13 53166KSP900 GRIP, L. HANDLE 1
14 53172KFN850 BRACKET, L. HANDLE LEVER 1
15 53178KSP900 LEVER COMP., L. HANDLE 1
16 53182KSP900 BOOT, L. HANDLE COVER 1
17 90113KSP901 BOLT, L. HANDLE LEVER PIVOT 1
18 938920502007 SCREW-WASHER, 5X20 1
19 938920502507 SCREW-WASHER, 5X25 1
20 938920503507 SCREW-WASHER, 5X35 1
21 938920504507 SCREW-WASHER, 5X45 1
22 9405006000 NUT, FLANGE, 6MM 1
23 960010602207 BOLT, FLANGE, 6X22 2
24 35330KEJ900 SWITCH COMP., FR. LEVER 1
25 53172KRC900 BRACKET, HANDLE LEVER 1
