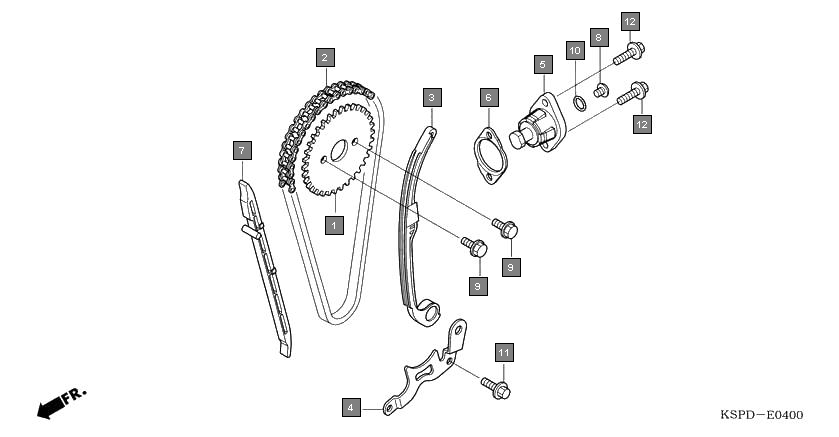

Motorcycles CB Unicorn CBF150M7 Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14321KRM840 SPROCKET, CAM(34T) 1
2 14401KCW851 CHAIN, CAM(94L)(BORG WARNER) 1
3 14510KSP911 TENSIONER ASSY., CAM CHAIN 1
4 14515KRM840 PLATE, TENSIONER SETTING 1
5 14520KSP910 LIFTER ASSY., TENSIONER 1
6 14560KSP910 GASKET, TENSIONER LIFTER 1
7 14610KSP910 GUIDE, CAM CHAIN 1
8 90005KRM840 SCREW, PAN, 6X6 1
9 90083KSP910 BOLT, KNOCK, 5MM 2
10 91306KRM840 O-RING, 1.5X9.5 1
11 957010601600 BOLT, FLANGE, 6X16 1
12 957020601600 BOLT, FLANGE, 6X16 1
13 960010602200 BOLT, FLANGE, 6X22 2
