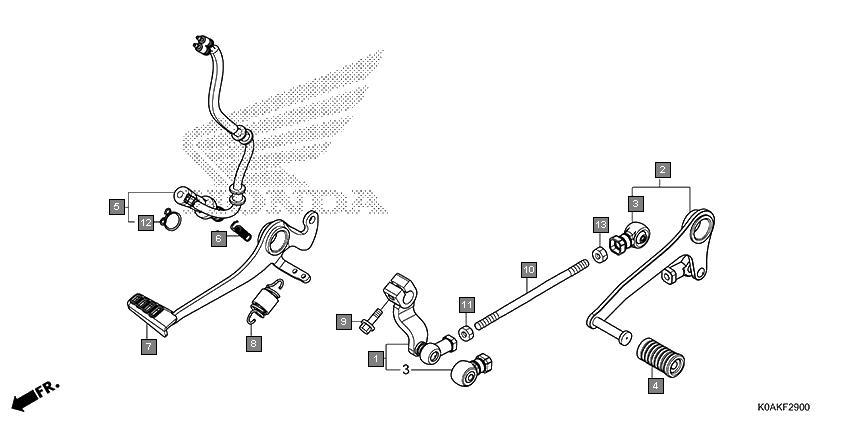

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24710K0AE10 | ARM COMP., GEAR CHANGE | 1 |
| 2 | 24720K0AE10 | PEDAL COMP., GEAR CHANGE | 1 |
| 3 | 24724MBWD21 | COVER, DUST | 2 |
| 4 | 24781KR3770 | RUBBER, GEAR CHANGE PEDAL | 1 |
| 5 | 35350K94T11 | SWITCH ASSY., RR. STOP | 1 |
| 6 | 35357HP0A00 | SPRING, STOP SWITCH | 1 |
| 7 | 46500K94T00 | PEDAL COMP., BRAKE | 1 |
| 8 | 46511KZ4J00 | SPRING ASSY., RR. BRAKE RETURN | 1 |
| 9 | 90010ML0720 | BOLT, FLANGE, 6X20 | 1 |
| 10 | 90165K0AE10 | BOLT, TIE ROD | 1 |
| 11 | 90301KYJ900 | NUT, SPECIAL, 6MM (LEFTHANDTHREAD) | 1 |
| 12 | 90601KAF003 | CLIP, SWITCH COVER | 1 |
| 13 | 94001060800S | NUT, HEX., 6MM | 1 |
