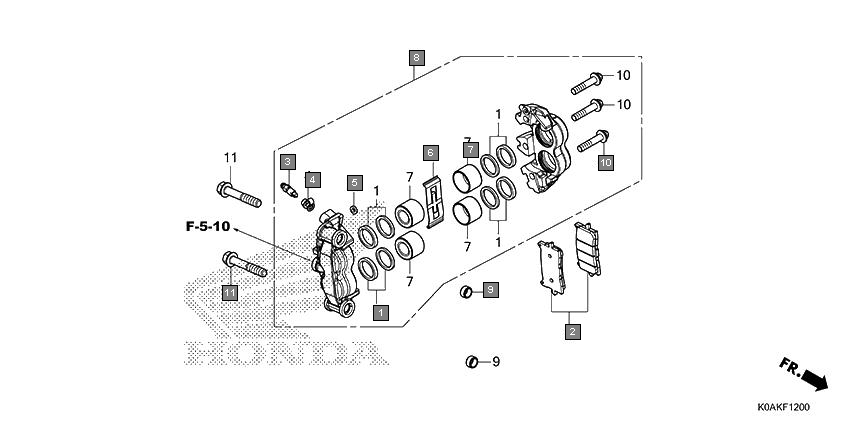

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06451GE2405 | SEAL SET, PISTON | 4 |
2 | 06455K94T01 | PAD SET, FR. | 1 |
3 | 43352568003 | SCREW, BLEEDER(NISSIN) | 1 |
4 | 43353461771 | CAP, BLEEDER | 1 |
5 | 45103MR7006 | SEAL, JOINT | 1 |
6 | 45106MJPG51 | SPRING, PAD | 1 |
7 | 45107K94T01 | PISTON A | 4 |
8 | 45250K94T01 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 |
9 | 51497K94T00 | SPACER, FR. FORK | 2 |
10 | 90104MJPG51 | BOLT, TORX, 8X38 | 3 |
11 | 90123K94T00 | BOLT, FLANGE, 10X57 | 2 |
