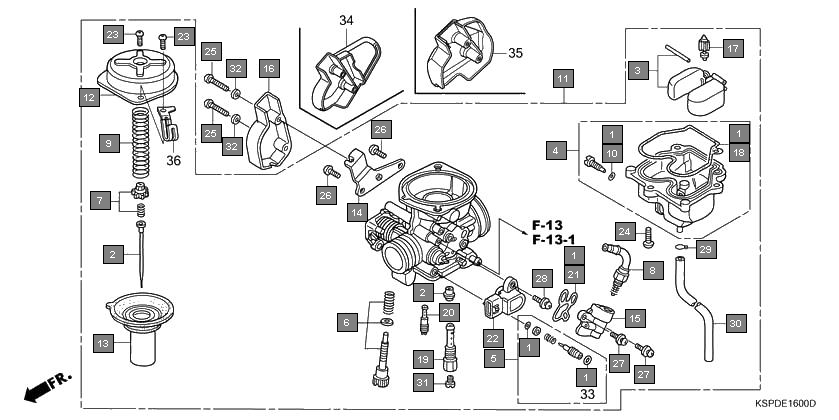

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16010KSP911 | GASKET SET | 1 |
| 2 | 16012KSP911 | NEEDLE SET, JET | 1 |
| 3 | 16013KRC921 | FLOAT SET | 1 |
| 4 | 16015KSP911 | CHAMBER SET, FLOAT | 1 |
| 5 | 16016KSP911 | SCREW SET A | 1 |
| 6 | 16028KPP901 | SCREW SET B | 1 |
| 7 | 16037KPP861 | PLATE SET, VALVE | 1 |
| 8 | 16046KSP911 | VALVE SET, STARTER | 1 |
| 9 | 16050KSP911 | SPRING, COMPRESSION COIL | 1 |
| 10 | 16075KRP981 | O-RING | 1 |
| 11 | 16100KSP913 | CARBURETOR ASSY.(AVK4FA C) | 1 |
| 12 | 16107KGF911 | TOP | 1 |
| 13 | 16111KSP912 | PISTON COMP., VACUUM | 1 |
| 14 | 16119KSP911 | STAY, WIRE | 1 |
| 15 | 16140KPP901 | BODY COMP., BYSTARTER | 1 |
| 16 | 16150KSP901 | COVER, THROTTLE CABLE | 1 |
| 17 | 16155KFR701 | VALVE COMP., FLOAT | 1 |
| 18 | 16163KRP981 | GASKET, FLOAT CHAMBER | 1 |
| 19 | 16165KSP911 | HOLDER, NEEDLE JET | 1 |
| 20 | 16180KGF911 | JET, SLOW, #38 | 1 |
| 21 | 16423KGH901 | GASKET, BYSTARTER | 1 |
| 22 | 37890GET003 | SENSOR ASSY., THROTTLE | 1 |
| 23 | 93500040081H | SCREW, PAN, 4X8 | 2 |
| 24 | 93500040121H | SCREW, PAN, 4X12 | 3 |
| 25 | 93500040250G | SCREW, PAN, 4X25 | 2 |
| 26 | 93500050121H | SCREW, PAN, 5X12 | 2 |
| 27 | 938920501218 | SCREW-WASHER, 5X12 | 2 |
| 28 | 938930501618 | SCREW-WASHER, 5X16 | 1 |
| 29 | 9500202089 | CLIP, TUBE(B8) | 1 |
| 30 | 950054548050 | TUBE, 4.5X480(95005-45001-50M) | 1 |
| 31 | 99101MAZ1150 | JET, MAIN, #115 | 1 |
| 32 | 9410104700 | WASHER, PLAIN, 4MM | 2 |
